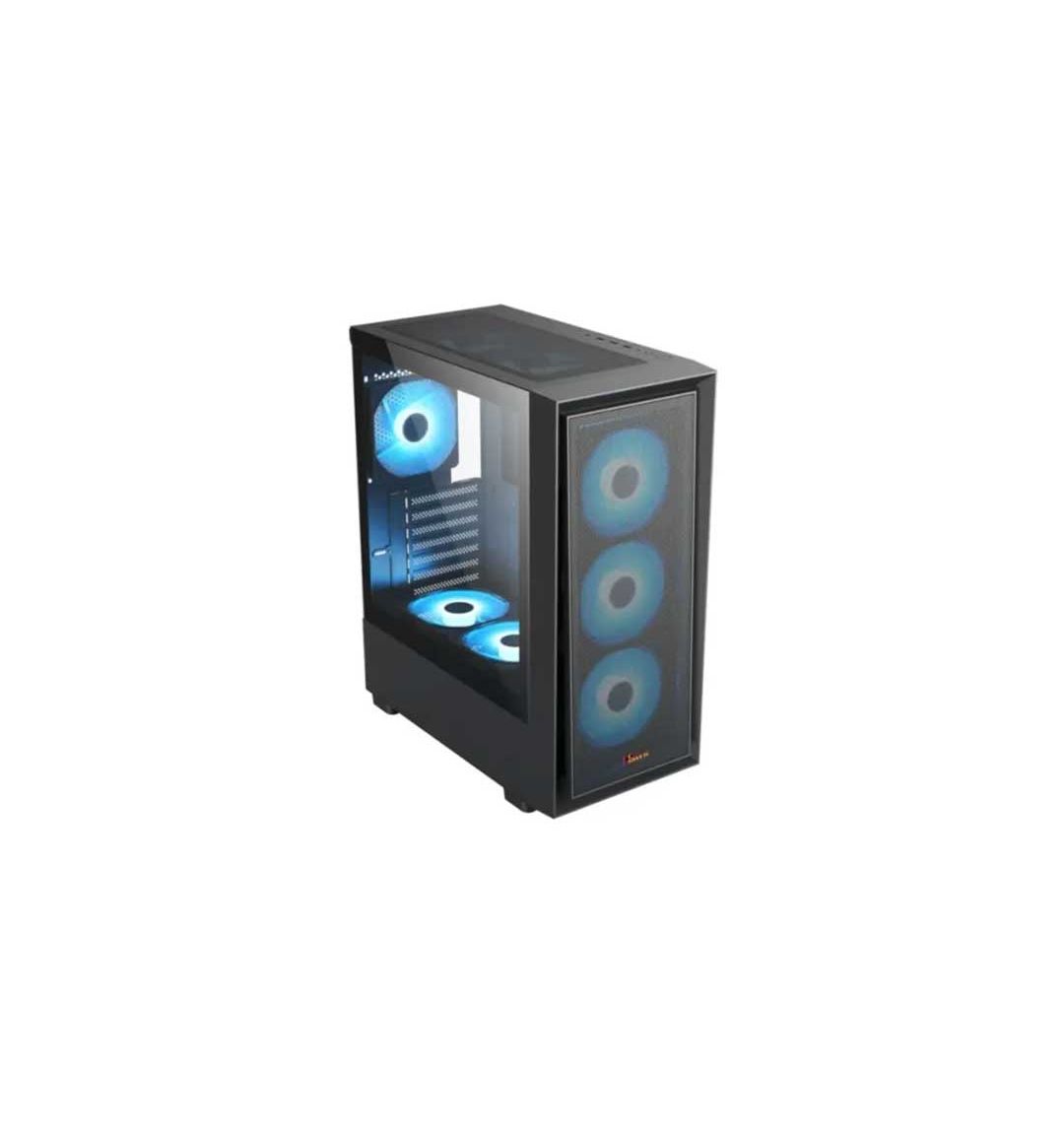

PC Power Crystal Mesh V3 BK ATX Desktop Gaming Casing
Specification
Form Factor | ATX Mid Tower |
Dimensions | 440mm x 210mm x 470mm (varies slightly by model) |
Material | Steel chassis with mesh front and tempered glass side panel |
Motherboard Compatibility | ATX, Micro-ATX, Mini-ITX |
Cooling System | Supports air and liquid cooling |
Pre-installed Fans | 4 x 120mm ARGB fans (3 front, 1 rear) |
Fan Support | Front: 3 x 120mm or 2 x 140mm, Top: 2 x 120mm or 2 x 140mm, Rear: 1 x 120mm |
Radiator Support | Front: Up to 360mm, Top: Up to 240mm, Rear: Up to 120mm |
Drive Bays | 2 x 3.5" HDD bays, 2 x 2.5" SSD bays |
Expansion Slots | 7 Expansion slots for PCIe cards, GPUs, or other devices |
GPU Clearance | Up to 360mm |
CPU Cooler Clearance | Up to 165mm |
PSU Support | ATX power supply (up to 200mm clearance) |
I/O Ports | 2 x USB 3.0, 1 x USB 2.0, 1 x HD Audio, RGB control button, Power & Reset buttons |
Lighting | 4 x ARGB fans included, RGB control via button |
Tempered Glass Panel | Side panel tempered glass for showcasing internal components |
Front Panel Design | Mesh front for optimized airflow |
Cable Management | 23mm space for cable routing behind the motherboard tray |
Dust Filters | Removable magnetic dust filters at the top and bottom |
Weight | Around 7.5 kg |
The PC Power Crystal Mesh V3 BK ATX Desktop Gaming Casing is a perfect blend of performance, aesthetics, and cooling optimization. With its mesh front panel, the case is designed to maximize airflow, ensuring that your components stay cool even during intense gaming sessions. The sleek Black color combined with the tempered glass side panel provides an elegant showcase of your high-end gaming hardware. This ATX mid-tower case comes with 4 pre-installed ARGB fans (3 in the front and 1 in the rear) to provide excellent cooling out of the box. The mesh front panel allows for increased airflow, drawing in cool air while the fans work to maintain optimal internal temperatures. It also supports liquid cooling with room for a 360mm radiator at the front and a 240mm radiator at the top, making it ideal for enthusiasts who want to push the limits of their system's cooling performance. The case features 7 expansion slots and supports GPUs up to 360mm in length, offering plenty of space for large graphics cards and multi-GPU setups. With a tempered glass side panel, you can easily display your build's components and the mesmerizing ARGB lighting from the included fans. The dedicated cable management system ensures a neat and tidy build, improving airflow and aesthetics. Storage options are abundant, with 2 x 3.5" HDD bays and 2 x 2.5" SSD bays, providing enough room for high-speed SSDs and bulk storage drives. The front I/O panel features 2 x USB 3.0, 1 x USB 2.0, HD audio ports, and an RGB control button, making it easy to access your peripherals and control the lighting. The PC Power Crystal Mesh V3 BK is designed for builders who prioritize cooling and aesthetics. With its mesh front, ample fan support, and stunning ARGB lighting, it’s a great choice for gamers who want performance and style in one package.
FAQ
1. What motherboards are compatible with the Crystal Mesh V3 BK?
The case supports ATX, Micro-ATX, and Mini-ITX motherboards.
2. Does the case come with pre-installed fans?
Yes, the case comes with 4 x 120mm ARGB fans pre-installed (3 in the front and 1 in the rear).
3. Can I add more fans or radiators for better cooling?
Yes, the case supports additional cooling:
- Front: 3 x 120mm or 2 x 140mm fans, or up to a 360mm radiator.
- Top: 2 x 120mm or 2 x 140mm fans, or up to a 240mm radiator.
- Rear: 1 x 120mm fan or a 120mm radiator.
4. How many drive bays does the case include?
The case features:
- 2 x 3.5" HDD bays
- 2 x 2.5" SSD bays
5. What is the maximum GPU length supported?
The case supports graphics cards up to 360mm in length.
6. What is the maximum CPU cooler height supported?
The maximum CPU cooler height supported is 165mm.
7. Does the case feature RGB lighting?
Yes, the case comes with 4 ARGB fans and an RGB control button on the front I/O panel.
8. What front I/O ports are available?
The front I/O panel includes:
- 2 x USB 3.0 ports
- 1 x USB 2.0 port
- HD audio jacks
- RGB control button
- Power and reset buttons
9. Is there sufficient space for cable management?
Yes, the case offers 23mm of space for cable routing behind the motherboard tray, ensuring clean cable management.
10. Does the case include dust filters?
Yes, the case is equipped with removable magnetic dust filters on the top and bottom to prevent dust from entering the system.
11. What size power supply is supported?
The case supports ATX power supplies with up to 200mm of clearance.
12. Can I install liquid cooling in this case?
Yes, the case is optimized for liquid cooling with support for:
- A 360mm radiator in the front,
- A 240mm radiator at the top,
- A 120mm radiator at the rear.
13. Does the case have a PSU shroud?
Yes, the case includes a PSU shroud to hide the power supply and improve the overall appearance of the build.
14. What is the weight of the case?
The Crystal Mesh V3 BK weighs approximately 7.5 kg.
15. Does the case have a mesh front for better airflow?
Yes, the mesh front panel is designed to improve airflow by allowing more cool air to enter the case.
