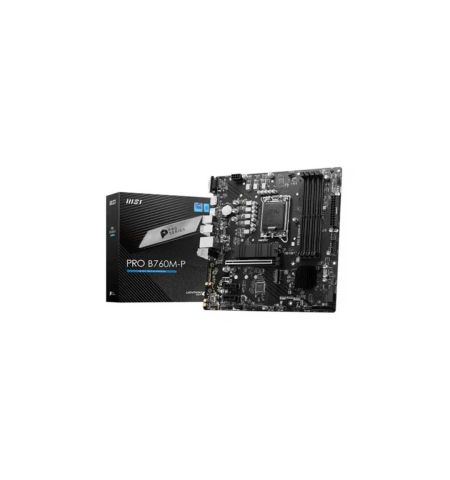

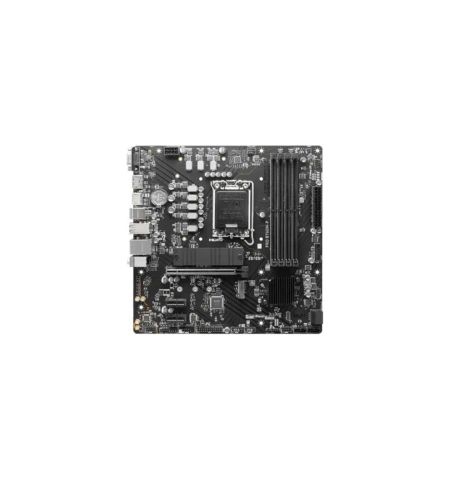

MSI PRO B760M-P DDR5 mATX Motherboard
Please sign in so that we can notify you about a reply
MSI PRO B760M-P DDR5 mATX Motherboard Specification
| Basic Information | |
| Supported CPU | Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 |
| Chipset | INTEL B760 |
| Form Factor | mATX 243.84mmx243.84mm |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| Expansion Slots | |
| PCI | 1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x1 (From Chipset) |
| Memory | |
| Type | DDR5 |
| Slots | 4 |
| Supported Memory | Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Maximum Memory | 192GB |
| Graphics | |
| Graphics | 1x HDMI Support HDMI 1.4, maximum resolution of 4K 30Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |

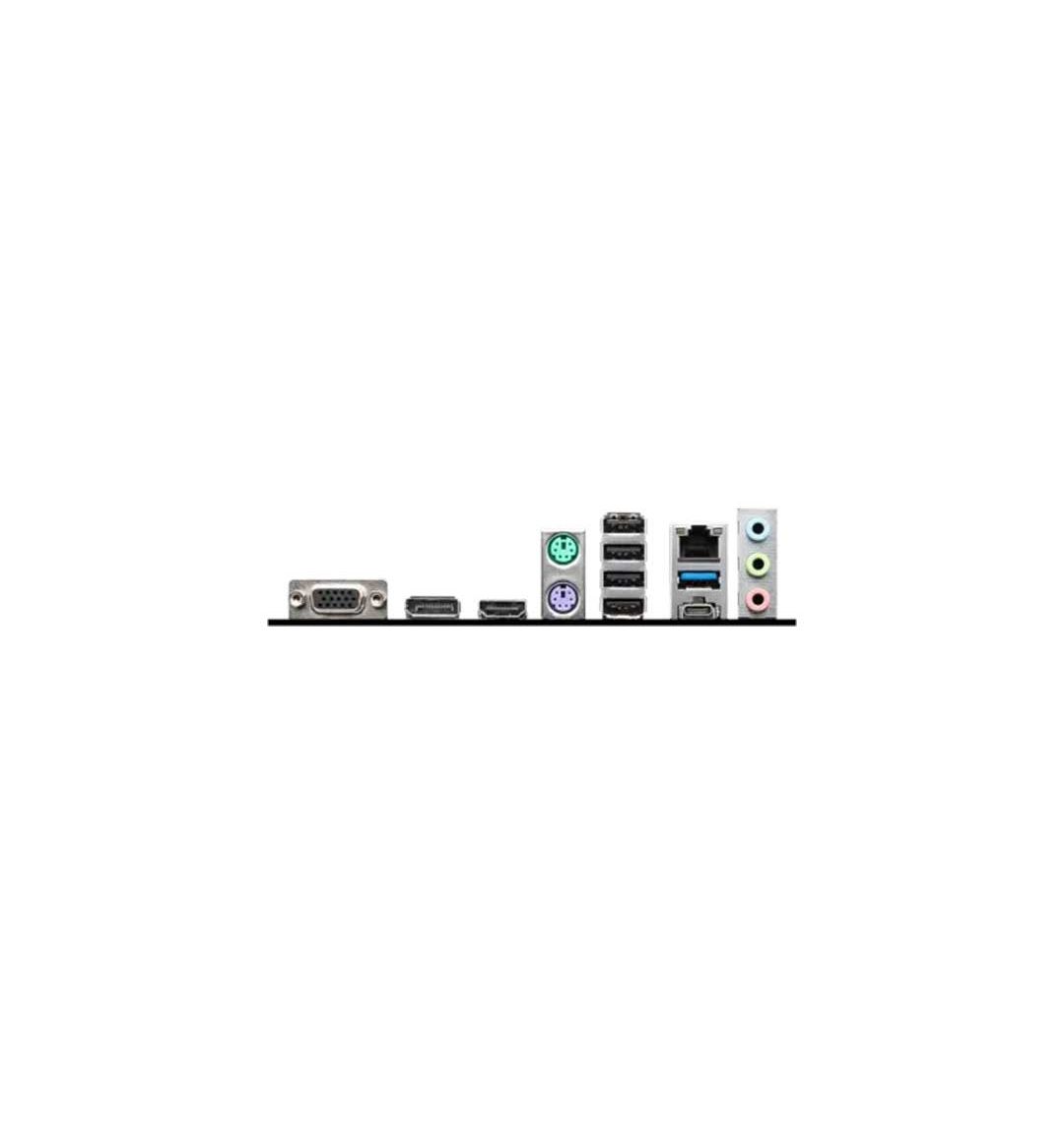

| Connector & Ports | |
| HDMI | 1x HDMI |
| Display Port (s) | 1x DisplayPort |
| VGA (s) | 1x VGA |
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen2 Type C (Rear) |
| LAN Port (s) | Realtek RTL8111H Gigabit LAN |
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Audio | Audio Connectors |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| Others | |
| Special Features | 4x EZ Debug LED |
| Warranty Information | |
| Manufacturing Warranty | 3 years |
MSI PRO B760M-P DDR5 mATX Motherboard: The Perfect Choice for Power Users
Are you a power user looking for a high-performance motherboard that can handle your demanding tasks? Look no further than the MSI PRO B760M-P DDR5 mATX Motherboard. This motherboard is designed to deliver exceptional performance, reliability, and versatility, making it the perfect choice for both gamers and professionals alike. In this product description, we will explore the key features of the MSI PRO B760M-P DDR5 mATX Motherboard and explain why it is a great investment for anyone seeking a powerful and reliable motherboard.
Key Features
1. Advanced DDR5 Technology
The MSI PRO B760M-P DDR5 mATX Motherboard is equipped with the latest DDR5 technology, which offers significant improvements in memory speed and bandwidth compared to its predecessors. With DDR5 support, you can experience faster data transfer rates, smoother multitasking, and enhanced overall system performance. Whether you're gaming, editing videos, or running resource-intensive applications, the DDR5 technology in this motherboard ensures a seamless and efficient computing experience.
2. Robust Power Delivery System
To meet the demands of power-hungry components, the MSI PRO B760M-P DDR5 mATX Motherboard features a robust power delivery system. This ensures stable power delivery to the CPU and other critical components, allowing for reliable performance even under heavy loads. Whether you're overclocking your CPU or pushing your system to the limits, this motherboard can handle it with ease.
3. Extensive Expansion Options
The MSI PRO B760M-P DDR5 mATX Motherboard offers a wide range of expansion options to accommodate your growing needs. With multiple PCIe slots, including PCIe 4.0 support, you can easily add high-performance graphics cards, storage devices, and other expansion cards to enhance your system's capabilities. Additionally, the motherboard supports multiple M.2 slots, allowing for fast and efficient storage solutions.
4. Advanced Cooling Solutions
Heat management is crucial for maintaining optimal performance and longevity of your components. The MSI PRO B760M-P DDR5 mATX Motherboard comes equipped with advanced cooling solutions, including dedicated heatsinks and fan headers. These features help dissipate heat effectively, keeping your system cool even during intense gaming sessions or heavy workloads. With improved thermal performance, you can push your system to its limits without worrying about overheating.
5. Enhanced Audio Experience
Immerse yourself in a captivating audio experience with the MSI PRO B760M-P DDR5 mATX Motherboard. It features high-quality audio components and advanced audio technologies, delivering crystal-clear sound and immersive surround sound effects. Whether you're gaming, watching movies, or listening to music, the enhanced audio capabilities of this motherboard will elevate your entertainment experience to new heights.
Buy from Nexus
Looking to purchase the MSI PRO B760M-P DDR5 mATX Motherboard? Look no further than Nexus, a trusted online retailer known for their wide selection of computer hardware and accessories. Nexus offers competitive prices, reliable shipping, and excellent customer service. Visit their website today to get your hands on this exceptional motherboard and unleash the full potential of your system.
Who is it for?
The MSI PRO B760M-P DDR5 mATX Motherboard is designed for power users who require top-notch performance and reliability. Whether you're a professional content creator, a hardcore gamer, or a technology enthusiast, this motherboard is perfect for you. Its advanced features, robust power delivery, and extensive expansion options make it an ideal choice for those who demand the best from their systems. With the MSI PRO B760M-P DDR5 mATX Motherboard, you can take your computing experience to the next level.
MSI PRO B760M-P DDR5 mATX Motherboard is a powerhouse that offers exceptional performance, reliability, and versatility. With its advanced DDR5 technology, robust power delivery system, extensive expansion options, advanced cooling solutions, and enhanced audio capabilities, this motherboard is a true game-changer. Whether you're a gamer, a content creator, or a professional, the MSI PRO B760M-P DDR5 mATX Motherboard will exceed your expectations and provide you with the performance you need to tackle any task. Don't miss out on this incredible motherboard, buy it from Nexus today and experience the power of MSI.
