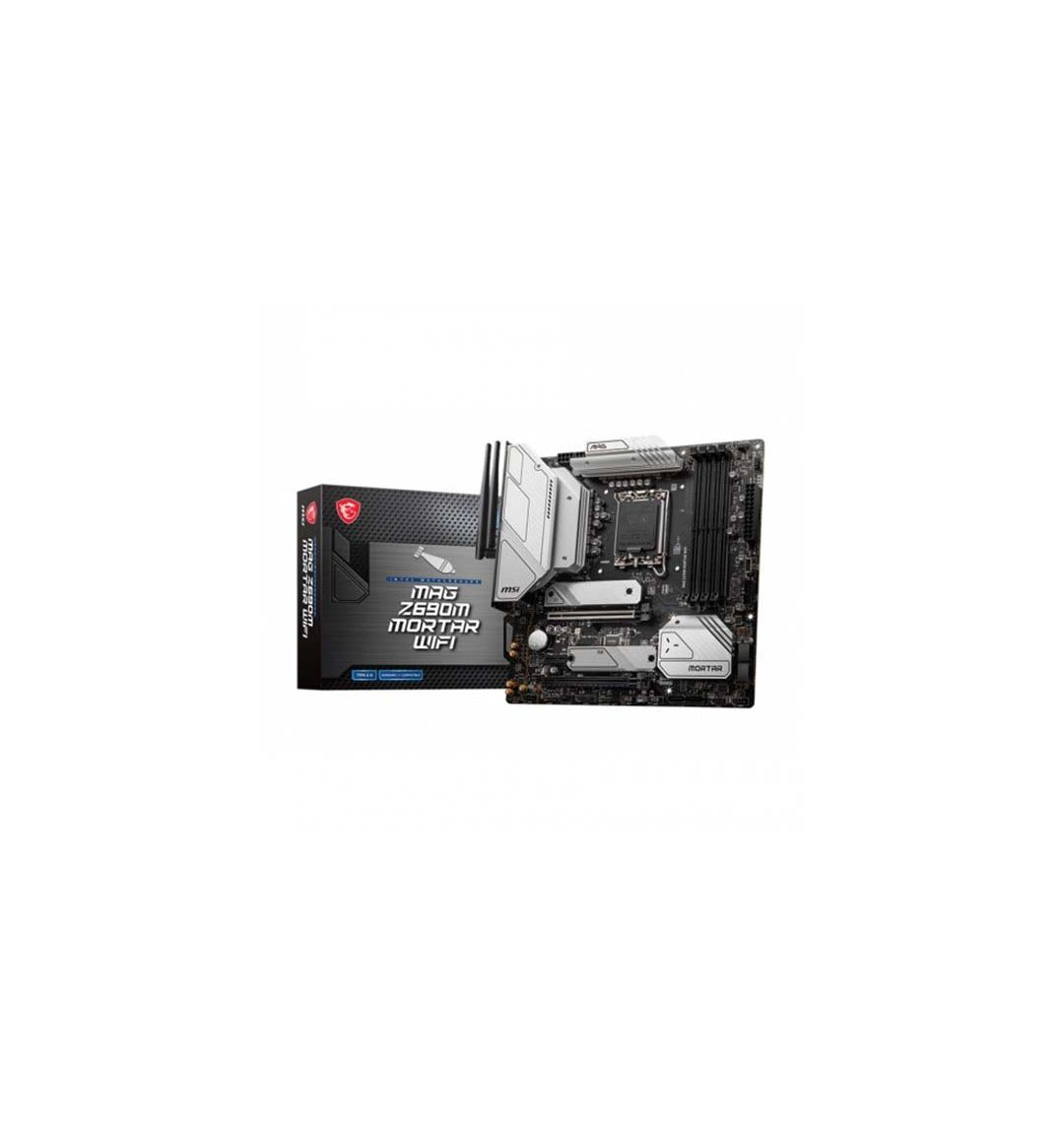

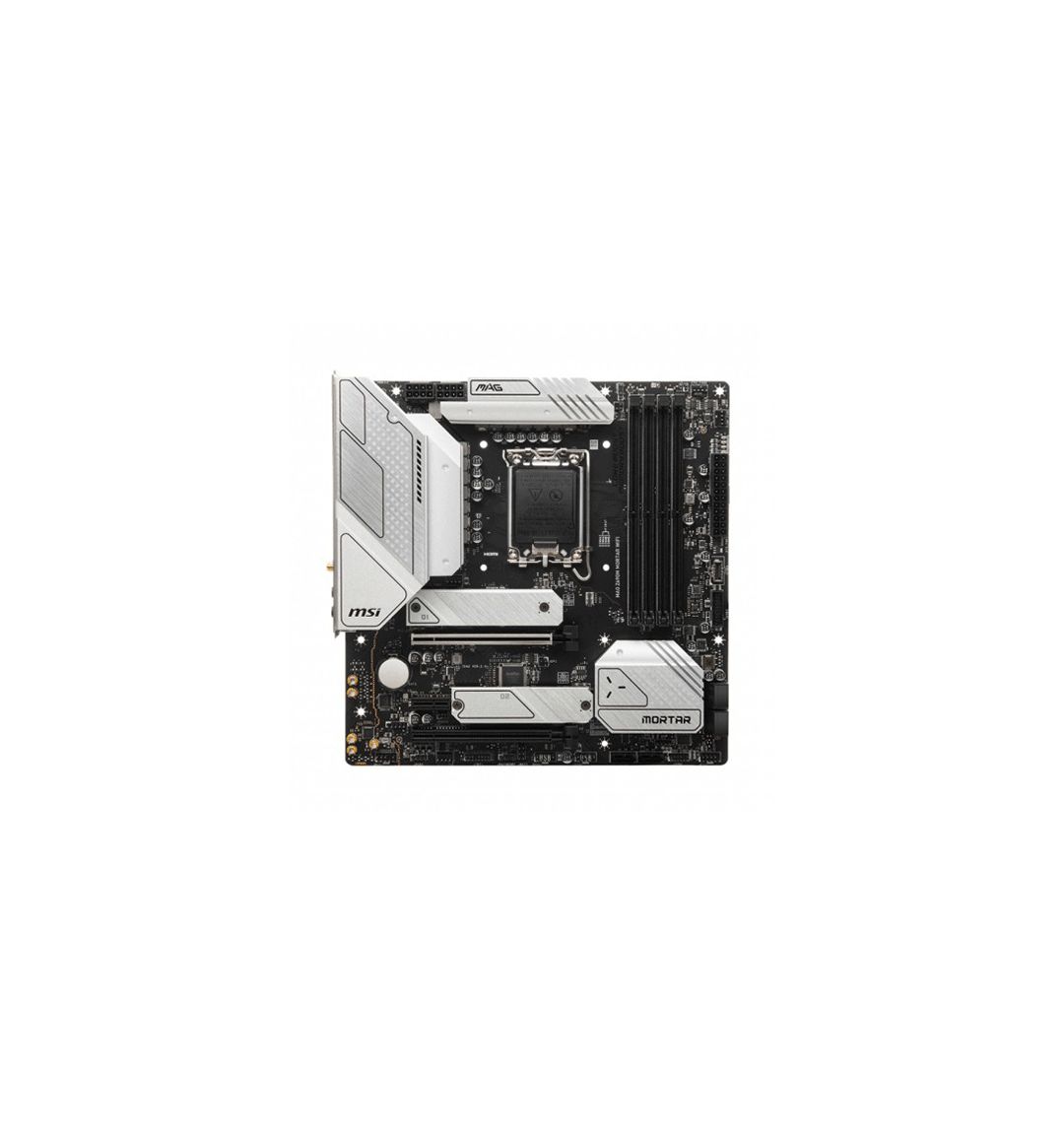

MSI MAG Z690M MORTAR WIFI 12th Gen Micro ATX Motherboard
MSI MAG Z690M MORTAR WIFI Motherboard
SPECIFICATION
Basic Information | |
Supported CPU | Supports 12th Gen Intel Core, Pentium Gold, and Celeron Processors Processor socket LGA1700 |
Chipset | Intel Z690 Chipset |
Form Factor | Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
Audio | Realtek ALC1200 Codec 7.1-Channel High-Definition Audio Supports S/PDIF output |
Expansion Slots | |
PCI | 2x PCIe x16 slots PCI_E1 slot (From CPU) Supports PCIe 4.0 x16 PCI_E3 slot (From Z690 Chipset) Supports PCIe 3.0 x4 1x PCIe 3.0 x1 slot |
Memory | |
Type | DDR5 |
Slots | 4 x DIMM |
Supported Memory | Supports 1R 4800 MHz (by JEDEC & POR) Max. overclocking frequency: 1DPC 1R Max speed up to 6200+ MHz 1DPC 2R Max speed up to 5200+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Intel XMP 3.0 OC Supports Dual Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
Maximum Memory | 128GB |
Graphics | |
Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz Supports 2-Way AMD CrossFire Technology |

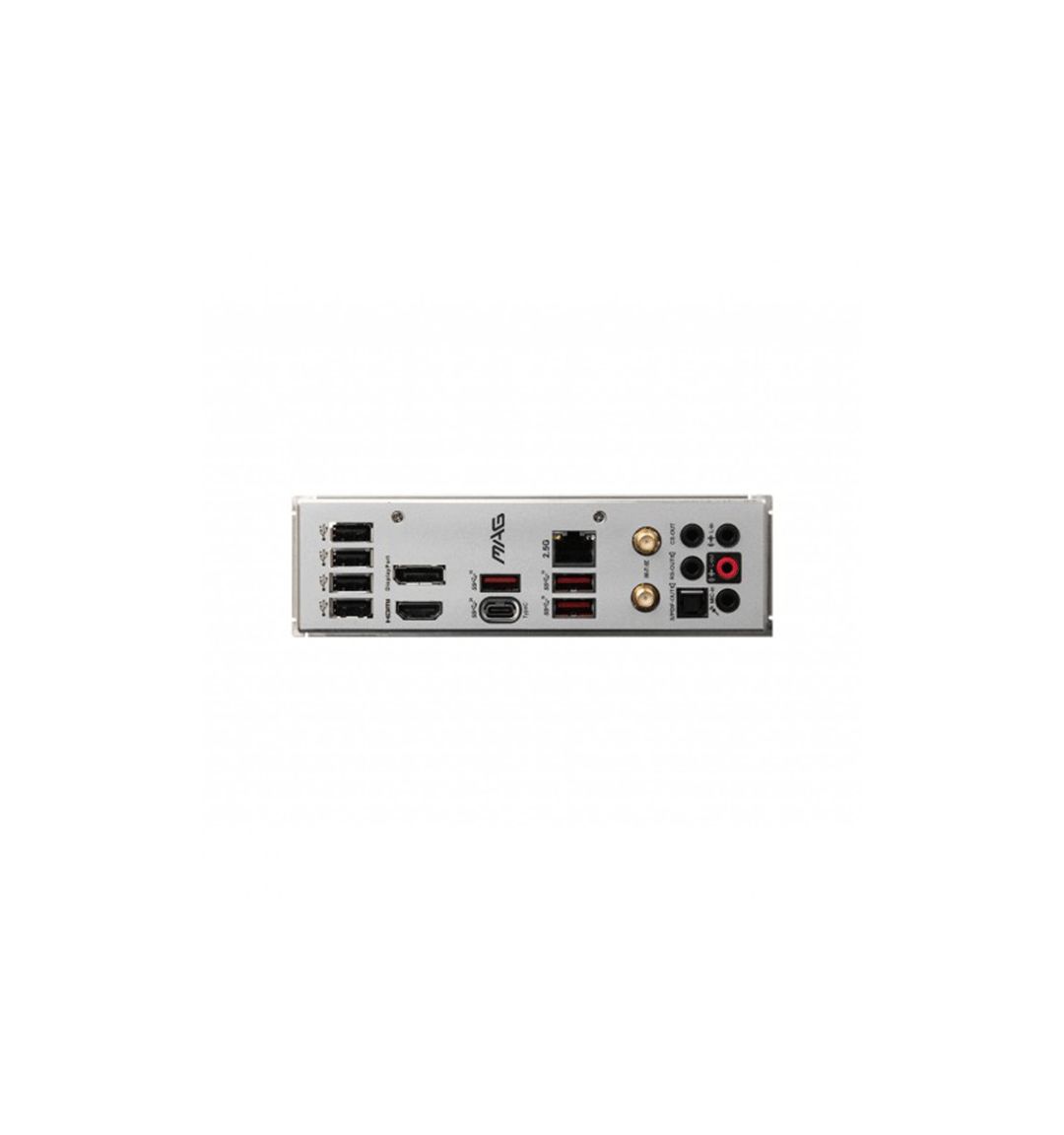

Connector & Ports | |
HDMI | 1x HDMI 2.1 |
Display Port (s) | 1x DisplayPort 1.4 |
USB (s) | Intel Z690 Chipset 1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel 1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector 4x USB 2.0 ports on the back panel USB Hub-GL3590 3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel USB Hub-GL850G 4x USB 2.0 ports available through internal connectors |
LAN Port (s) | 1x Realtek 8125BG 2.5Gbps LAN controller |
Wireless Communication module | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2, FIPS, FISMA |
Supported Storage | 4x SATA 6Gb/s ports (SATA5~8, from Z690 Chipset) 2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061) 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From Z690 Chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Optane Memory Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices |
Audio | 1x Front panel audio connector |
Internal I/O Ports | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C connector 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3) 1x Tuning Controller connector |
TPM (Trusted Platform Module ) | 1x TPM module connector |
Warranty: 03 Years
Nexus will be your first choice If you want to buy an MSI MAG Z690M MORTAR WIFI 12th Gen Motherboard in Bangladesh Because we sell only MSI-authorized original Motherboard. So you are at the right place to buy the right MSI Motherboard at the lowest price in Bangladesh.
Nexus Offers you an MSI MAG Z690M MORTAR WIFI Motherboard at the best price in Bangladesh, which is your budget-friendly Motherboard. Do you want to know what is the price of the MSI MAG Z690M MORTAR WIFI Motherboard? and where you can get the MSI Motherboard at the lowest price in BD? Yes, it is Nexus. MSI MAG Z690M MORTAR WIFI Motherboard is now available at Nexus, So Don’t Think more to buy MSI MAG Z690M MORTAR WIFI Motherboard.
