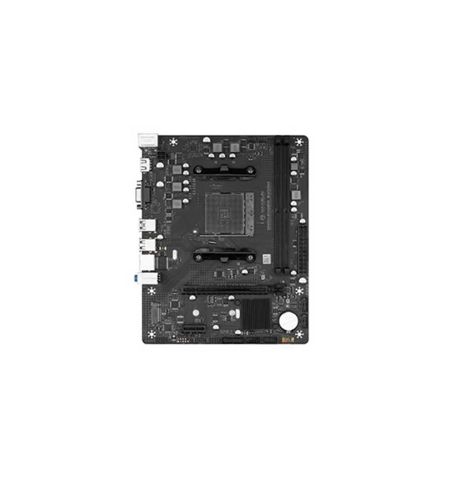

Maxsun Challenger B450M DDR4 AMD Motherboard
Specification
Model | MAXSUN Challenger B450M AM4 M-ATX Motherboard |
Chipset | AMD B450 |
Socket Type | AM4 |
Supported CPUs | AMD Ryzen 1st, 2nd, 3rd Gen & Ryzen 5000 Series (with BIOS update) |
Memory Type | DDR4 |
Memory Slots | 2 x DDR4 DIMM Slots (up to 64GB) |
Memory Speed | 3200 MHz (OC), 2933 MHz (Standard) |
Form Factor | Micro ATX (mATX) |
Networking | 1G LAN (Realtek RTL8111H) |
PCIe Slots | 1 x PCIe 3.0 x16 |
1 x PCIe 2.0 x16 | |
1 x PCIe 2.0 x1 | |
Storage Interface | 4 x SATA III Ports |
1 x M.2 Slot (PCIe 3.0 x4, SATA) | |
USB Ports | 6 x USB 3.1 Gen 1 |
6 x USB 2.0 | |
Audio | 7.1 Channel HD Audio (Realtek ALC887 codec) |
Video Output | 1 x HDMI |
1 x DVI-D | |
Expansion Slots | 1 x PCIe 3.0 x16 |
1 x PCIe 2.0 x16 | |
1 x PCIe 2.0 x1 | |
Power Connectors | 24-pin ATX |
8-pin CPU power connector | |
Cooling Support | Multiple fan headers for CPU and system cooling |
RGB Support | RGB header for customizable lighting effects |
Power Delivery | 6-phase power design for stable power supply |
Back I/O Ports | 1 x USB 3.1 Gen 2 Type-C |
1 x USB 3.1 Gen 2 Type-A | |
2 x USB 3.1 Gen 1 | |
1 x HDMI | |
1 x DVI-D | |
1 x LAN | |
Audio jacks (7.1) | |
BIOS | UEFI BIOS with GUI support |
Operating System Support | Windows 10, Windows 11 |
Warranty | 3-year limited warranty |
MAXSUN Challenger B450M AM4 M-ATX Motherboard
The MAXSUN Challenger B450M AM4 M-ATX Motherboard is a reliable and feature-packed motherboard designed for users looking to build efficient and compact desktop systems. Built around the AMD B450 chipset, this motherboard supports AMD Ryzen 1st, 2nd, and 3rd Generation processors, along with Ryzen 5000 Series processors (with BIOS update) through the AM4 socket.
Its compact Micro ATX (mATX) form factor makes it ideal for smaller PC builds without sacrificing performance or expandability. With support for up to 64GB of DDR4 memory across 2 DIMM slots, it allows users to enhance performance with memory speeds of up to 3200 MHz (overclocked). The motherboard also features PCIe 3.0 x16 and PCIe 2.0 x16 slots for modern GPUs, as well as an M.2 slot for high-speed NVMe SSDs, ensuring fast boot times and data access.
In terms of connectivity, the board comes with USB 3.1 Gen 2, including Type-C and Type-A ports for faster data transfer. The motherboard also includes a 1G LAN port for stable networking and 7.1 channel HD audio, powered by the Realtek ALC887 codec, ensuring an immersive audio experience for gaming and multimedia.
The MAXSUN Challenger B450M also supports RGB lighting via an RGB header, allowing users to customize the lighting effects for a personalized look. This motherboard is perfect for users looking for a cost-effective, high-performance solution for gaming, content creation, or general computing.
FAQ
1. What processors are compatible with the MAXSUN Challenger B450M motherboard?
- The motherboard supports AMD Ryzen 1st, 2nd, 3rd Gen processors, as well as Ryzen 5000 Series processors (with a BIOS update) through the AM4 socket.
2. How much RAM can I install on this motherboard?
- You can install up to 64GB of DDR4 RAM in the 2 DIMM slots, with supported speeds up to 3200 MHz (overclocked).
3. Does the MAXSUN Challenger B450M support PCIe 3.0?
- Yes, the motherboard features a PCIe 3.0 x16 slot for the latest GPUs, along with a PCIe 2.0 x16 slot for expansion cards.
4. How many M.2 slots are available on the MAXSUN Challenger B450M?
- The motherboard has 1 x M.2 slot, which supports both PCIe 3.0 x4 NVMe SSDs and SATA SSDs, allowing for high-speed storage solutions.
5. Does the motherboard support overclocking?
- Yes, the motherboard supports overclocking for both AMD Ryzen processors and DDR4 memory, enabling users to push their system's performance further.
6. What kind of audio support does the MAXSUN Challenger B450M offer?
- The motherboard provides 7.1 channel HD audio, powered by the Realtek ALC887 codec, delivering high-quality sound for gaming and multimedia applications.
7. What networking options are available?
- The MAXSUN Challenger B450M features a 1G LAN port (Realtek RTL8111H), providing reliable wired connectivity for fast and stable networking.
