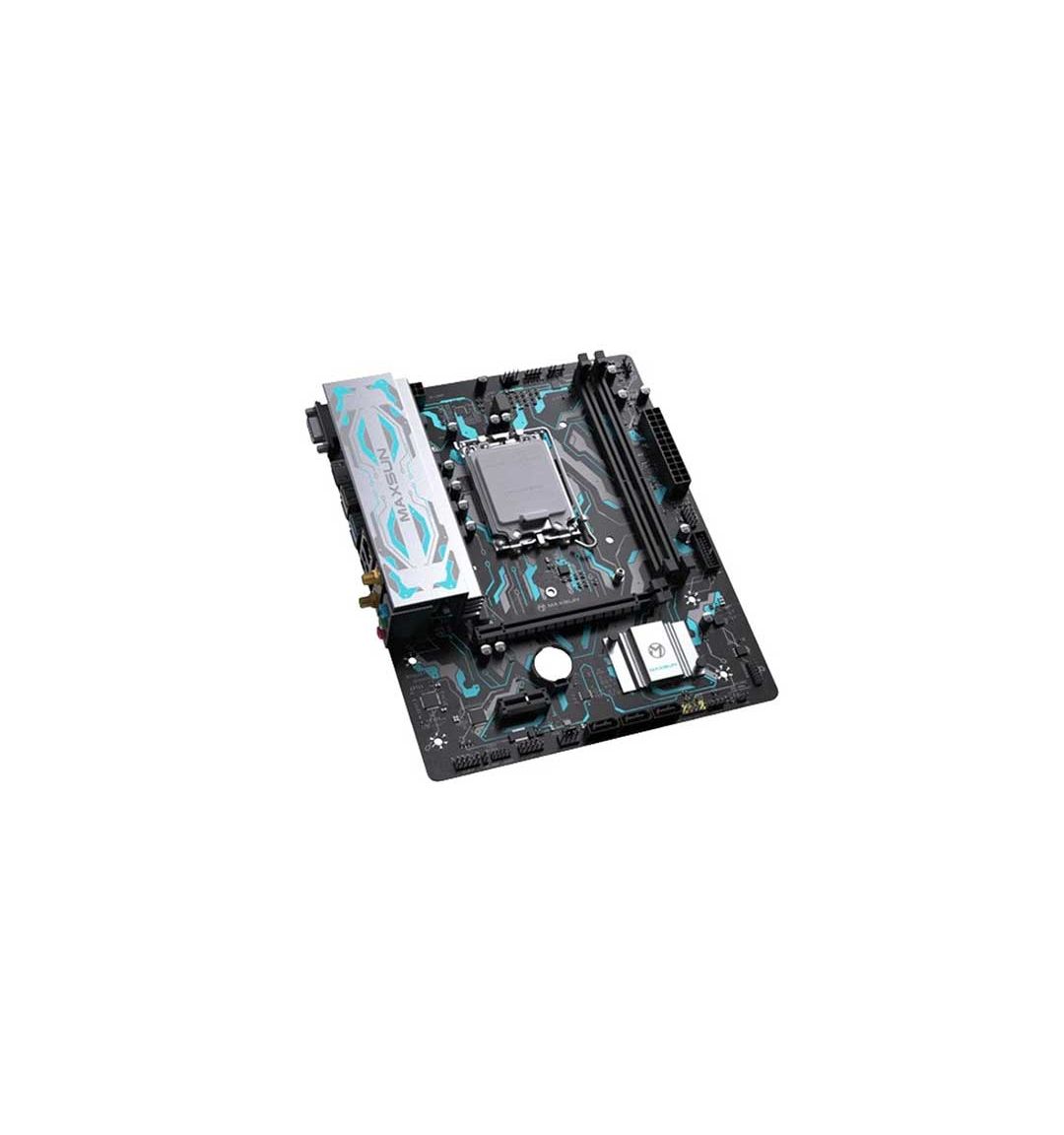

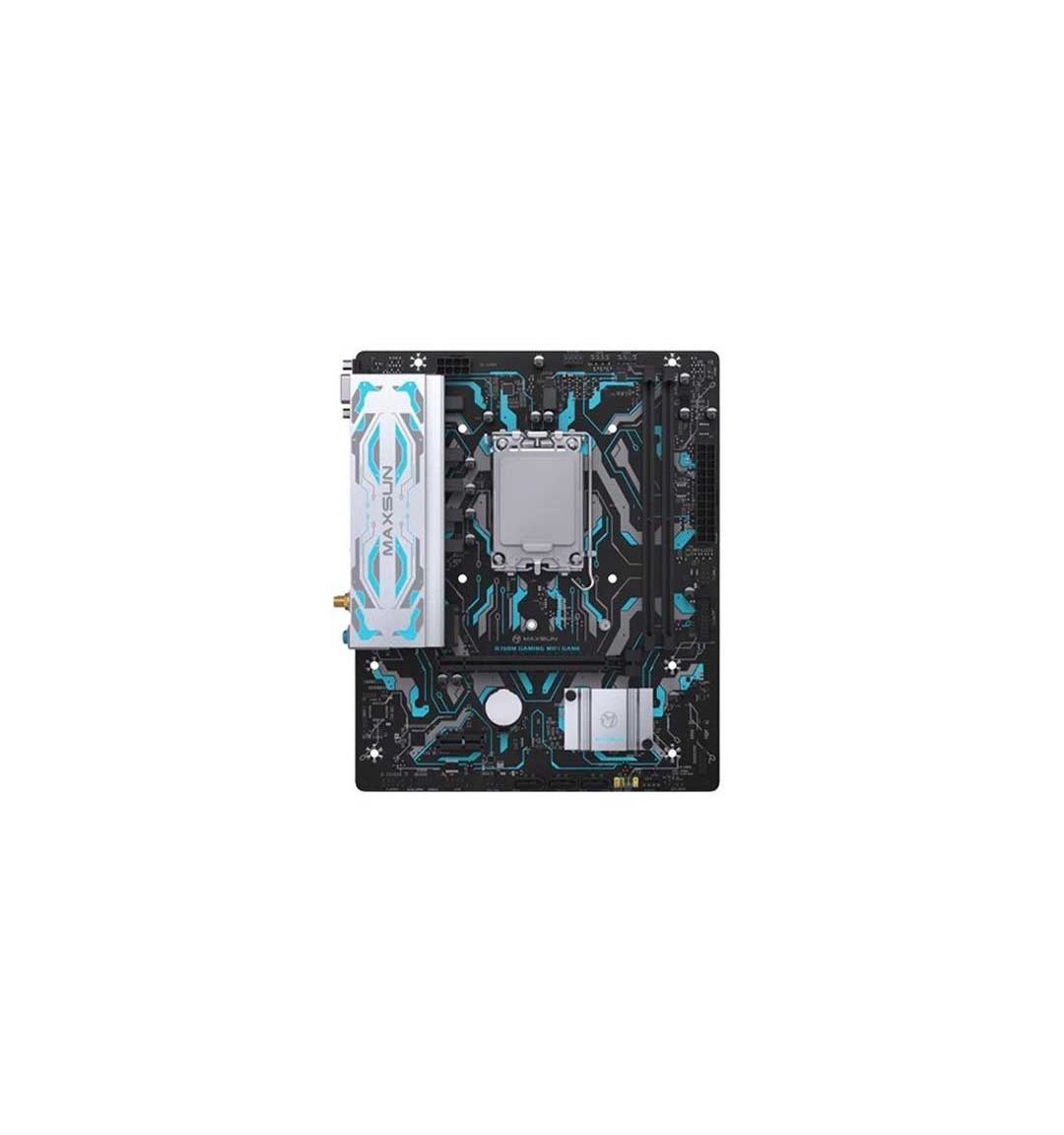

Maxsun B760M Gaming Gank Wifi DDR5 Micro ATX Motherboard
Maxsun B760M Gaming Gank
Specification
Processor | |
Supported CPU | Support for LGA1700 slots The 12th ,13th and14t generation processors TDP: 75W |
Mainboard | |
Chipset | INTEL B760 High-speed chipset |
Memory | |
Memory | 2x DIMM DDR5 memory slots Maximum support in total is 128GB Support for dual-channel memory technology Support for 4800/5200/5600/OC + memory frequency Supports Intel XMP Technology |
Storage | |
Storage | 1x M.2 slots (2242 / 2280 PCIE X4 / X2 channel SSD supported only) 3x SATA 3.0 ports |
Display | |
Display | HDMI 1.4: 4096x2160 @30Hz (HDCP2.2) VGA: 1920x1080 @60Hz |
Graphics | |
Graphics | 1x VGA *Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1x HDMI port *HDMI port supports up to 4K@30Hz *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. |
Audio & Microphone | |
Audio | Integrated REALTEK ALC 897 sound chip |
Networking & Connectivity | |
Networks | Integrated REALTEK 8111H card chip (10 / 100 / 1000 / 2500Mbit) 1x onboard R]45 port Support network arousal Support PXE no disk, UEFI no disk guide Support for Bluetooth 5.2 |
Software | |
Operating System | Support for Windows 11 64-bit, Windows 10 64-bit |
Technical Info | |
LED Type | 4x Distributed Debug LED |
Ports | |
Slots | 1x PCIE X16 4.0 slot 3.0 sl Support for AMD and NVIDIA and INTEL graphics cards Support for PCIE resizable bar technology(Requires CPU and GPU to support synchronous compatibility) |
Internal I/O Ports | 1x 24-PIN motherboard ATX power supply 1x 8-PIN motherboard ATX 12V power supply port, 12V input, 1x sets of system fan pins and 1x group of CPU fan pins 1x group of PUMP fan pinslx group chassis front control panel pin (F PANEL) One 12V NRGB pin and two 5V ARGB pins |

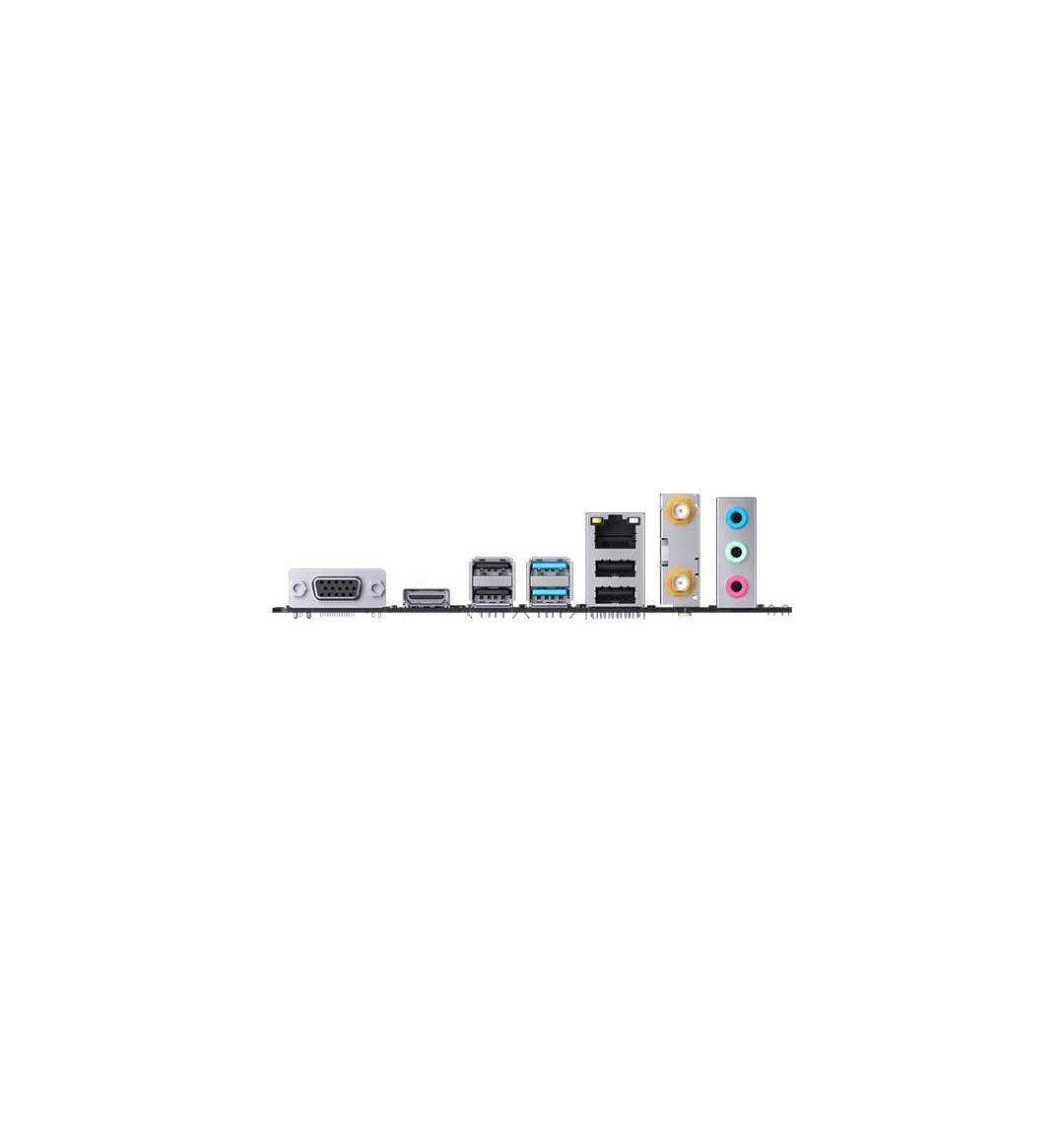

USB | *On-board rear port: 2x USB 3.2 GEN 2 ports, 6x USB2.0 ports Plate insert: 1x group (2 double rows) U SB2.0 pins, 1x group (single row) USB2.0 pin, 1xgroup (2 rows) USB 3.2 GEN 1 pin, 1x TYPE C(USB 3.2 GEN 2X2) ports |
Physical Specification | |
Form Factor | Micro ATX 225mm x 195mm |
Warranty Information | |
Warranty | 3 Years |
Maxsun B760M Gaming Gank Wifi DDR5 Micro ATX Motherboard
Key Features:
- Chipset: Built around the Intel B760 chipset, supporting the latest 12th and 13th Gen Intel Core processors, allowing for powerful multitasking and gaming performance.
- Memory Support: It supports DDR5 memory with speeds up to 5600+ MHz, delivering faster data rates, lower power consumption, and enhanced bandwidth for smooth gaming and heavy workloads.
- Form Factor: Micro ATX form factor, making it ideal for compact builds without compromising on features.
- WiFi 6 & Bluetooth 5.2: Integrated WiFi 6 and Bluetooth 5.2 offer faster wireless speeds, better network efficiency, and stable connections for online gaming, streaming, and file sharing.
- PCIe 5.0 Ready: The motherboard is PCIe 5.0 ready, providing faster bandwidth for next-gen GPUs and NVMe SSDs, ensuring ultra-fast data transfer rates.
- Storage Options: Equipped with multiple M.2 slots (NVMe), supporting PCIe 4.0 SSDs for faster boot times, game load times, and overall system responsiveness.
- Enhanced Power Design: Features a robust power delivery system to ensure stable operation under heavy workloads, perfect for overclocking and high-performance tasks.
- Cooling Solutions: Comes with advanced cooling options, including support for multiple fan headers and water-cooling setups, ensuring optimal thermal performance for gaming and intensive use.
- Audio & USB Ports: High-definition audio with noise-canceling technology and multiple USB ports (including USB 3.2 Gen 2) for peripherals, ensuring immersive sound quality and fast data transfers.
- RGB Lighting: Supports customizable RGB lighting, allowing you to sync it with other compatible components for a more personalized gaming aesthetic.
Ideal Use Cases:
- Gaming: Optimized for gamers with high-speed RAM support and advanced connectivity options.
- Content Creation: Perfect for creators who require fast memory, storage, and stable processing power for editing and rendering tasks.
- Future-Proofing: With PCIe 5.0 and DDR5 support, it's designed to keep up with future hardware advancements.
