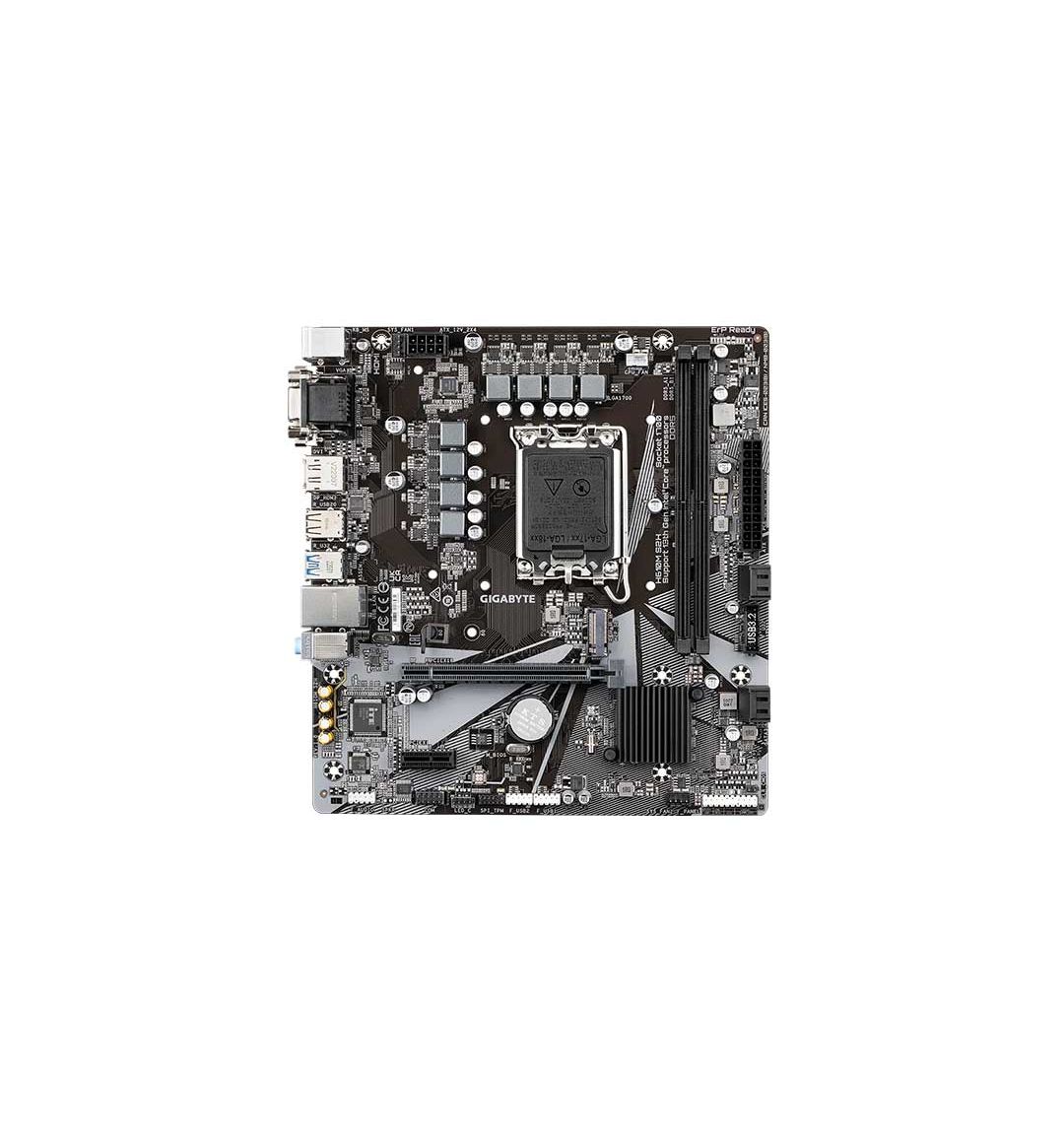

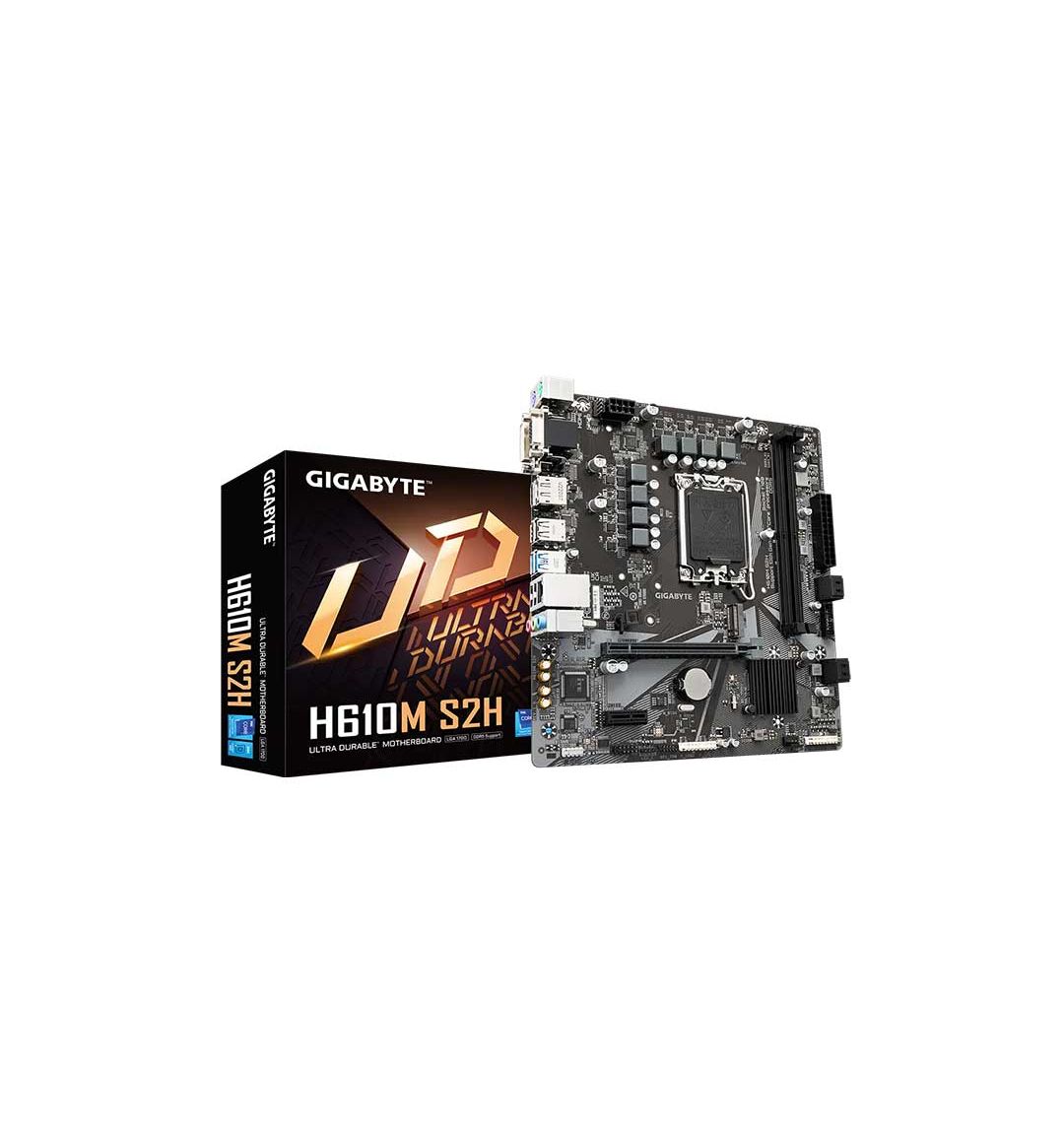

GIGABYTE H610M S2H DDR5 mATX Motherboard
Please sign in so that we can notify you about a reply
GIGABYTE H610M S2H DDR5 mATX Motherboard Specification
| Basic Information | |
| Supported CPU | Support for 12th/ 13th/ 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package L3 cache varies with CPU |
| Chipset | Intel H610 Express Chipset |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 23.0cm x 21.5cm |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| Expansion Slots | |
| PCI | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Memory | |
| Type | DDR5 |
| Slots | 2 x DDR DIMM sockets |
| Supported Memory | 13th Generation Intel Core i9/i7 processors: Support for DDR5 5600/5200/4800/4400 MT/s memory modules 13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors: Support for DDR5 4800/4400 MT/s memory modules 2 x DDR DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules support for Extreme Memory Profile (XMP) memory modules |
| Maximum Memory | up to 64 GB (32 GB single DIMM capacity) of system memory |
| Graphics | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 |
| Connector & Ports | |
| HDMI | 1 x HDMI port |
| D-Sub (s) | 1 x D-Sub port |
| DVI-D (s) | 1 x DVI-D port |
| USB (s) | Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers |
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps) |
| Supported Storage | Chipset: 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors |
| Audio | 3 x audio jacks |
| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x DVI-D port 1 x DisplayPort 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| Others | |
| Special Features | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| Bundled Software | Norton Internet Security (OEM version) cFosSpeed |
| Warranty Information | |
| Manufacturing Warranty | 3 years |
Gigabyte H610M-S2H DDR5 Motherboard: The Perfect Choice for Your Next PC Build
In the world of computer hardware, a motherboard is the backbone of any PC build. It is responsible for connecting all the essential components, ensuring smooth communication between them, and providing stability and performance. When it comes to choosing a reliable and feature-rich motherboard, the Gigabyte H610M-S2H DDR5 stands out as an excellent option. In this comprehensive product description, we will delve into the key features, benefits, and reasons why this motherboard is a top choice for both casual users and avid gamers.
Key Features
1. Advanced DDR5 Technology
The Gigabyte H610M-S2H DDR5 motherboard is equipped with the latest DDR5 technology, which offers significant improvements over its predecessor, DDR4. DDR5 provides higher memory bandwidth, increased capacity, and improved power efficiency, resulting in faster data transfer rates and enhanced system performance. With DDR5 support, this motherboard ensures a smooth and lag-free computing experience, whether you're multitasking, gaming, or running resource-intensive applications.
2. Robust Power Delivery System
To ensure stable power delivery and efficient performance, the Gigabyte H610M-S2H DDR5 motherboard features a robust power delivery system. It is designed with high-quality components, including premium capacitors and power phases, which provide reliable power to the CPU and other critical components. This results in improved system stability, reduced power consumption, and enhanced overclocking capabilities for enthusiasts who want to push their hardware to the limits.
3. Expansion and Connectivity Options
The Gigabyte H610M-S2H DDR5 motherboard offers a wide range of expansion and connectivity options to meet the needs of various users. It features PCIe 4.0 slots, allowing you to connect high-speed graphics cards, storage devices, and other expansion cards. Additionally, it provides multiple USB ports, including USB 3.2 Gen 1 and USB 2.0, for seamless connectivity with peripherals. With support for HDMI and DVI outputs, this motherboard ensures smooth and high-quality video output for your displays.
4. Comprehensive Cooling Solutions
Efficient cooling is crucial for maintaining optimal performance and prolonging the lifespan of your PC components. The Gigabyte H610M-S2H DDR5 motherboard comes equipped with comprehensive cooling solutions to keep your system cool under heavy workloads. It features multiple fan headers, allowing you to connect and control multiple fans for effective heat dissipation. Additionally, it supports advanced cooling technologies, such as Smart Fan 6, which intelligently adjusts fan speeds based on temperature sensors, ensuring optimal cooling performance while minimizing noise levels.
5. Gigabyte BIOS and Software Suite
The Gigabyte H610M-S2H DDR5 motherboard comes with a user-friendly BIOS interface and a comprehensive software suite, providing users with convenient control and customization options. The BIOS allows you to easily configure various settings, including overclocking, fan control, and system monitoring. The software suite includes useful utilities, such as Gigabyte App Center and EasyTune, which enable you to optimize system performance, update drivers, and manage your PC effortlessly.
Who Should Buy the Gigabyte H610M-S2H DDR5 Motherboard?
The Gigabyte H610M-S2H DDR5 motherboard is an ideal choice for a wide range of users, including:
- Casual Users: If you're a casual user who primarily uses your PC for web browsing, multimedia consumption, and light productivity tasks, this motherboard offers a reliable and cost-effective solution. Its robust power delivery system and DDR5 support ensure smooth performance for everyday computing needs.
- Content Creators: For content creators who work with photo editing, video editing, and 3D rendering software, the Gigabyte H610M-S2H DDR5 motherboard provides the necessary power and stability. Its expansion options allow for the addition of high-performance graphics cards and storage devices, enabling faster rendering and seamless multitasking.
- Gamers: Gamers will appreciate the Gigabyte H610M-S2H DDR5 motherboard's gaming-centric features. With support for high-speed PCIe 4.0 slots, it allows for the installation of powerful graphics cards, delivering smooth and immersive gaming experiences. The robust power delivery system and advanced cooling solutions ensure reliable performance even during intense gaming sessions.
Where to Buy the Gigabyte H610M-S2H DDR5 Motherboard?
The Gigabyte H610M-S2H DDR5 motherboard is available for purchase from various retailers. One recommended option is to buy it from Nexus, a trusted online store known for its wide range of computer hardware and excellent customer service. Nexus offers competitive prices and ensures genuine products, making it a reliable choice## FAQ
Q1: What is DDR5 technology, and why is it important for a motherboard?
DDR5 technology is the latest generation of RAM (Random Access Memory) technology for computer systems. It offers significant improvements over its predecessor, DDR4, including higher memory bandwidth, increased capacity, and improved power efficiency. DDR5 support in a motherboard ensures faster data transfer rates, enhanced system performance, and better multitasking capabilities.
Q2: Can I overclock my CPU with the Gigabyte H610M-S2H DDR5 motherboard?
Yes, the Gigabyte H610M-S2H DDR5 motherboard supports CPU overclocking. It features a robust power delivery system and advanced BIOS settings that allow users to adjust CPU frequencies, voltages, and other parameters for optimal performance. However, it's important to note that the extent of overclocking depends on the specific CPU model and cooling solution used.
Q3: How many expansion slots does the Gigabyte H610M-S2H DDR5 motherboard have?
The Gigabyte H610M-S2H DDR5 motherboard features multiple expansion slots, including PCIe 4.0 slots. The exact number of slots may vary depending on the specific model, but typically, it offers at least one PCIe x16 slot for high-speed graphics cards and one or more PCIe x1 slots for additional expansion cards, such as sound cards or network adapters.
Q4: Does the Gigabyte H610M-S2H DDR5 motherboard support multiple displays?
Yes, the Gigabyte H610M-S2H DDR5 motherboard supports multiple displays. It features HDMI and DVI outputs, allowing you to connect multiple monitors or displays simultaneously. This is particularly useful for users who require a multi-monitor setup for productivity tasks, content creation, or gaming.
Q5: What are the cooling options available with the Gigabyte H610M-S2H DDR5 motherboard?
The Gigabyte H610M-S2H DDR5 motherboard offers comprehensive cooling solutions to keep your system cool under heavy workloads. It features multiple fan headers, allowing you to connect and control multiple fans for effective heat dissipation. Additionally, it supports advanced cooling technologies, such as Smart Fan 6, which intelligently adjusts fan speeds based on temperature sensors, ensuring optimal cooling performance while minimizing noise levels.
