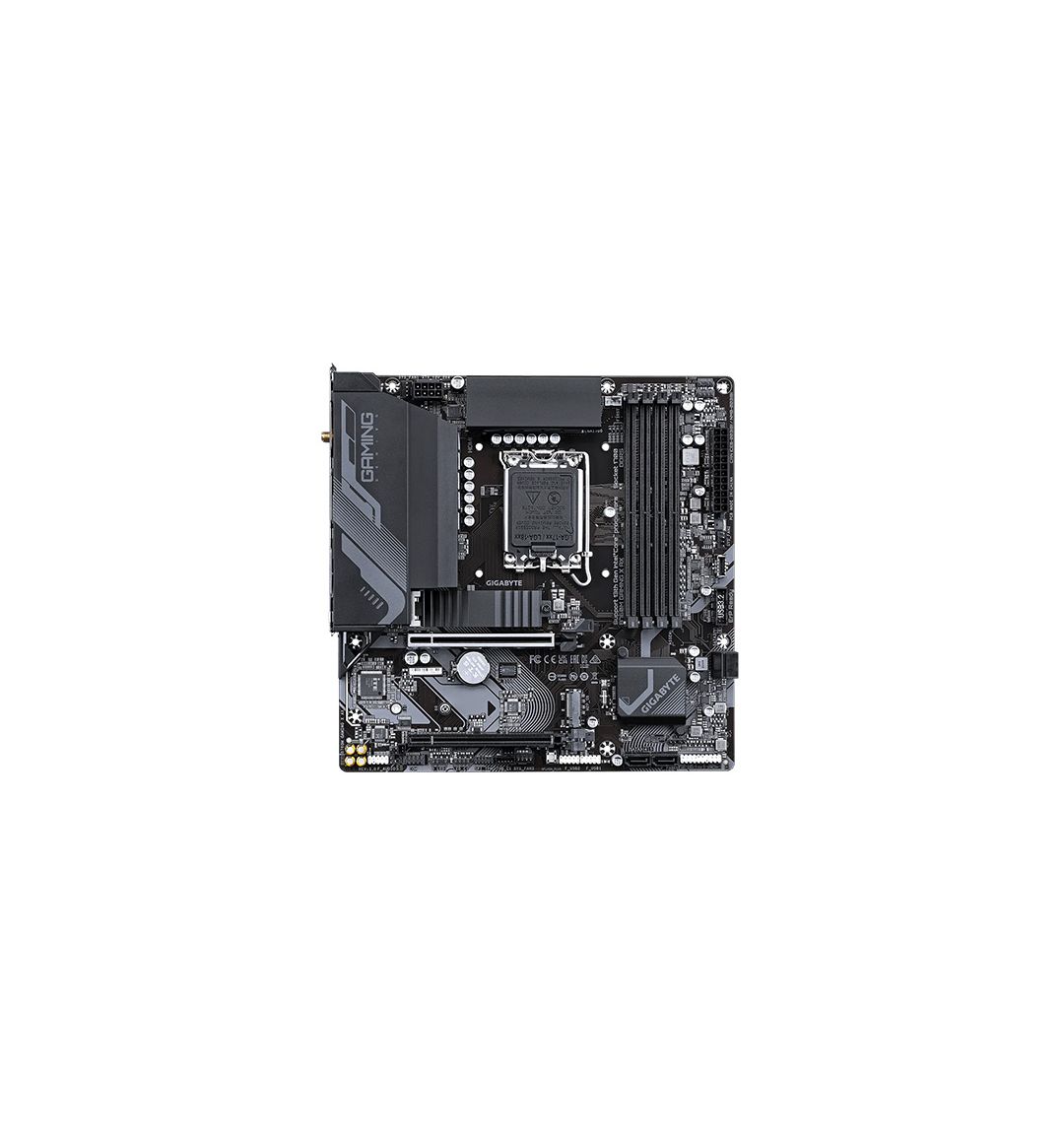

Gigabyte B760M GAMING X AX 13th and 12th Gen DDR5 Wi-Fi Micro ATX GAMING Motherboard
Gigabyte B760M GAMING X AX DDR5 GAMING Motherboard
SPECIFICATION
Brand | Gigabyte |
Model | Gigabyte B760M GAMING X AX |
Chipset Brand | Intel |
Chipset | Intel B760 Express Chipset |
Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
Supported CPU | LGA1700 socket 1. Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors 2. L3 cache varies with CPU |
Memory Type | DDR5 |
Memory | 1. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory 3. Dual channel memory architecture 4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) 5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules 6. Support for Extreme Memory Profile (XMP) memory modules |
Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz 2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
Expansion Slot | CPU 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) Chipset 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) |
Supported Storage | CPU 1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset 1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 2. 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
Audio | 1. Realtek Audio CODEC
2. High Definition Audio 3. 2/4/5.1/7.1-channel 4. Support for S/PDIF Out |
Wireless | Intel Wi-Fi 6E AX210 (PCB rev. 1.0) 1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands 2. BLUETOOTH 5.3 3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Intel Wi-Fi 6E AX211 (PCB rev. 1.1) 1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands 2. BLUETOOTH 5.3 3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.2) 1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands 2. BLUETOOTH 5.3 3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
USB Port | Chipset 1. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 2. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 3. 1 x USB 2.0/1.1 port on the back panel Chipset+2 USB 2.0 Hubs 1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
Internal I/O Ports | 1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector 3. 1 x CPU fan header 4. 3 x system fan headers 5. 2 x addressable LED strip headers 6. 2 x RGB LED strip headers 7. 2 x M.2 Socket 3 connectors 8. 4 x SATA 6Gb/s connectors 9. 1 x front panel header 10. 1 x front panel audio header 11. 1 x S/PDIF Out header 12. 1 x USB Type-C® header, with USB 3.2 Gen 2 support 13. 1 x USB 3.2 Gen 1 header 14. 2 x USB 2.0/1.1 headers 15. 2 x Thunderbolt™ add-in card connectors 16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 17. 1 x serial port header 18. 1 x Q-Flash Plus button 19. 1 x reset jumper 20. 1 x Clear CMOS jumper |
External I/O Ports | 1. 3 x USB 3.2 Gen 1 ports
2. 5 x USB 2.0/1.1 ports 3. 2 x SMA antenna connectors (2T2R) 4. 1 x HDMI 2.0 port 5. 1 x DisplayPort 6. 1 x RJ-45 port 9. 3 x audio jacks |
Supported Operating System | Windows 11 64-bit
Windows 10 64-bit |
BIOS | 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Warranty Information | |
Warranty | 3 years |
