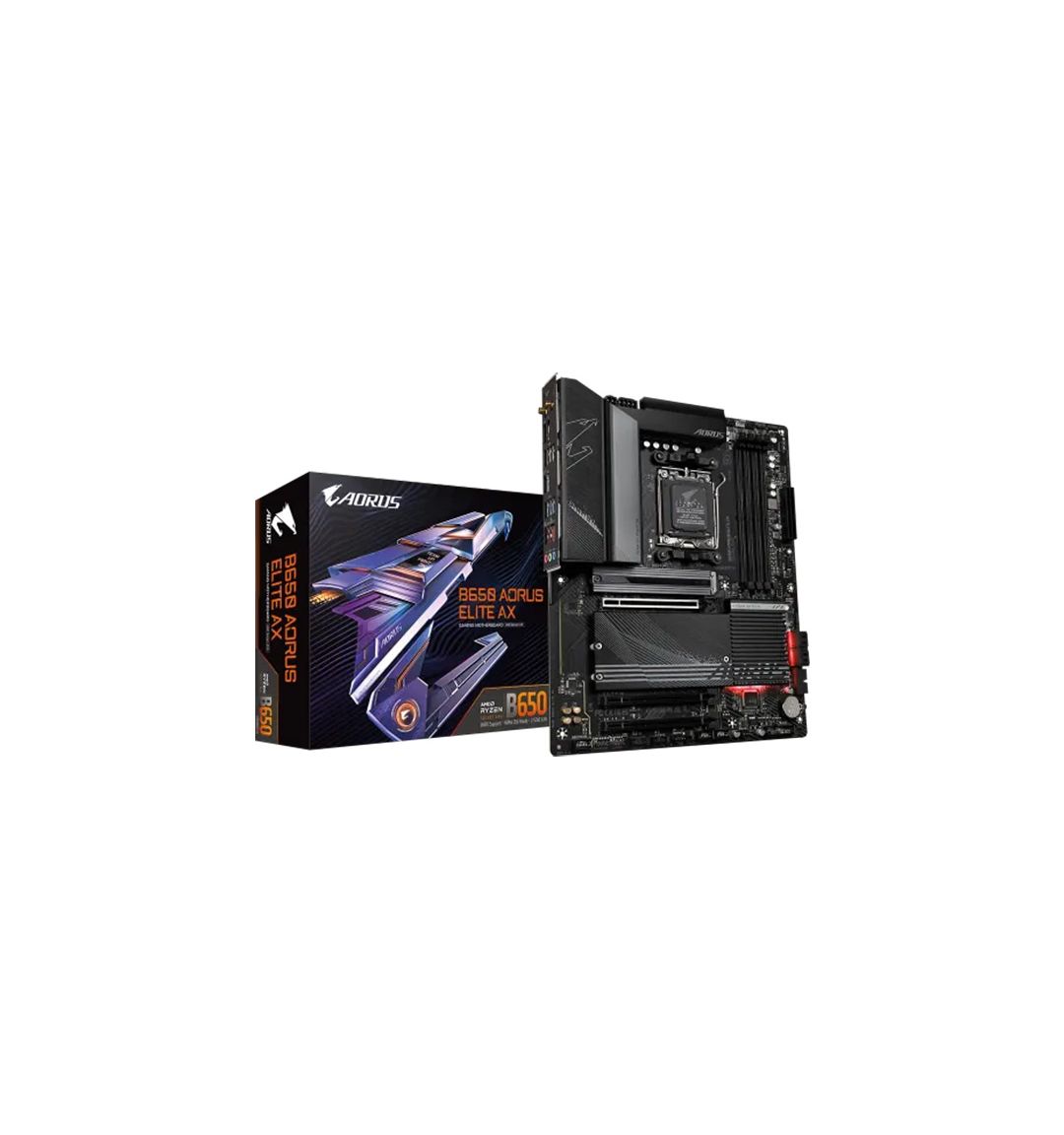

Gigabyte B650 AORUS ELITE AX DDR5 ATX Motherboard
Save 7%
Please sign in so that we can notify you about a reply

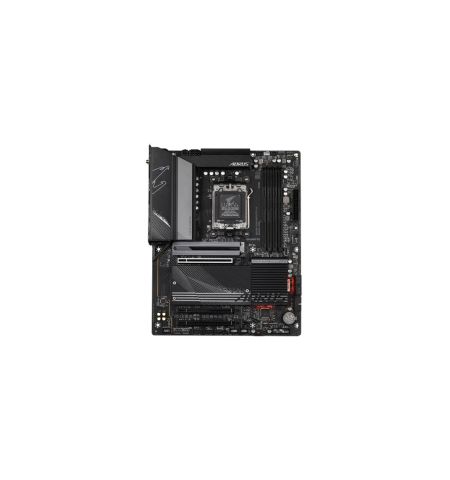

Gigabyte B650 AORUS ELITE AX DDR5 Motherboard
SPECIFICATION
| Brand | Gigabyte |
| Model | Gigabyte B650 AORUS ELITE AX |
| Chipset Brand | AMD |
| Chipset | AMD B650 |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Supported CPU | AMD Socket AM5 support for: AMD Ryzen 7000 Series Processors |
| Memory Type | DDR5 |
| Memory | 1. Support for DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory 3. Dual channel memory architecture 4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules 5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory module |
| Onboard Graphics | Integrated Graphics Processor: 1.1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz 1.1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Expansion Slot | CPU 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) Chipset 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2) |
| Supported Storage | CPU 1. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU) 2. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset 1. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB) 2. 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Audio | 1. Realtek Audio CODEC
2. High Definition Audio 3. 2/4/5.1/7.1-channel |
| Wireless | AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0) 1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands 2. BLUETOOTH 5.3 3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Intel Wi-Fi 6E AX210 (For PCB rev. 1.1) 1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands 2. BLUETOOTH 5.3 3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| USB Port | CPU: 1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support 2. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU + USB 2.0 Hub: 1. 4 x USB 2.0/1.1 ports on the back panel Chipset: 1. 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header 2. 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) 3. 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: 1. 4 x USB 3.2 Gen 1 ports on the back panel |
| Internal I/O Ports | 1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector 3. 1 x 4-pin ATX 12V power connector 4. 1 x CPU fan header 5. 1 x water cooling CPU fan header 6. 3 x system fan headers 7. 1 x system fan/water cooling pump header 8. 2 x addressable LED strip headers 9. 2 x RGB LED strip headers 10. 1 x CPU cooler LED strip/RGB LED strip header 11. 3 x M.2 Socket 3 connectors 12. 4 x SATA 6Gb/s connectors 13. 1 x front panel header 14. 1 x front panel audio header 15. 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 16. 1 x USB 3.2 Gen 1 header 17. 2 x USB 2.0/1.1 headers 18. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 19. 1 x reset button 20. 1 x reset jumper 21. 1 x Clear CMOS jumper |

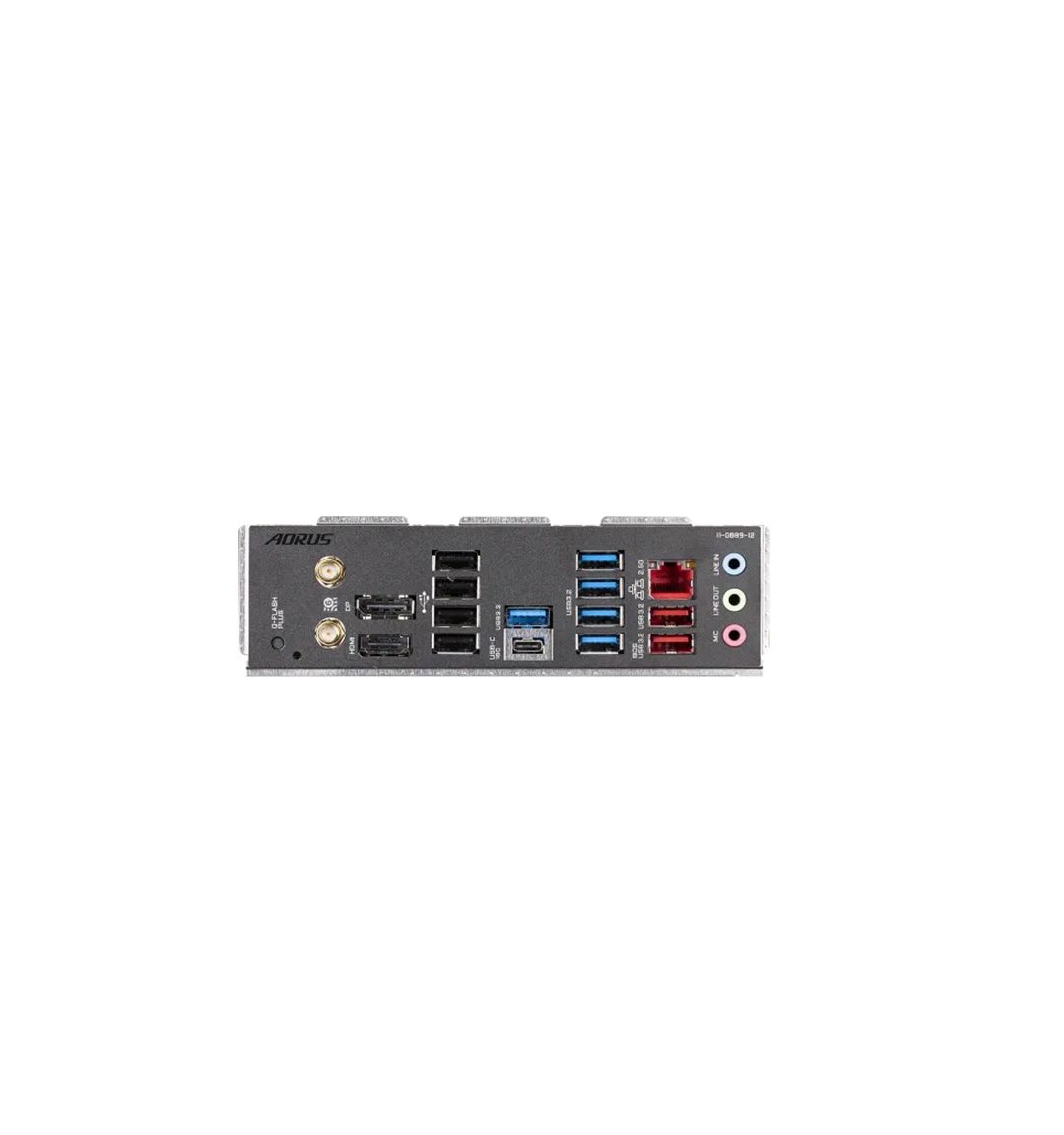

| External I/O Ports | 1. 1 x Q-Flash Plus button
2. 2 x SMA antenna connectors (2T2R) 3. 1 x DisplayPort 4. 1 x HDMI port 5. 1 x USB Type-C® port, with USB 3.2 Gen 2 support 6. 2 x USB 3.2 Gen 2 Type-A ports (red) 7. 5 x USB 3.2 Gen 1 ports 8. 4 x USB 2.0/1.1 ports 9. 1 x RJ-45 port 10. 3 x audio jacks |
| Supported Operating System | Support for Windows 11 64-bit
Support for Windows 10 64-bit |
| BIOS | 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Warranty Information | |
| Warranty | 3 years |
Nexus will be your first choice If you want to buy Gigabyte B650 AORUS ELITE AX Motherboard in Bangladesh, Because we sale only GIGABYTE authorized original Motherboard. So you are at the right place to buy right Gigabyte Motherboard at the lowest price in Bangladesh.
Nexus Offers you Gigabyte B650 AORUS ELITE AX Motherboard at the best price in Bangladesh, which is your budget-friendly Motherboard. Do you want to know what is the price of Gigabyte B650 AORUS ELITE AX Motherboard? and where you can get Gigabyte Motherboard at lowest price in BD? Yes, it is Nexus. Gigabyte B650 AORUS ELITE AX Motherboard now available at Nexus, So Don’t Think more to buy Gigabyte B650 AORUS ELITE AX Motherboard.
