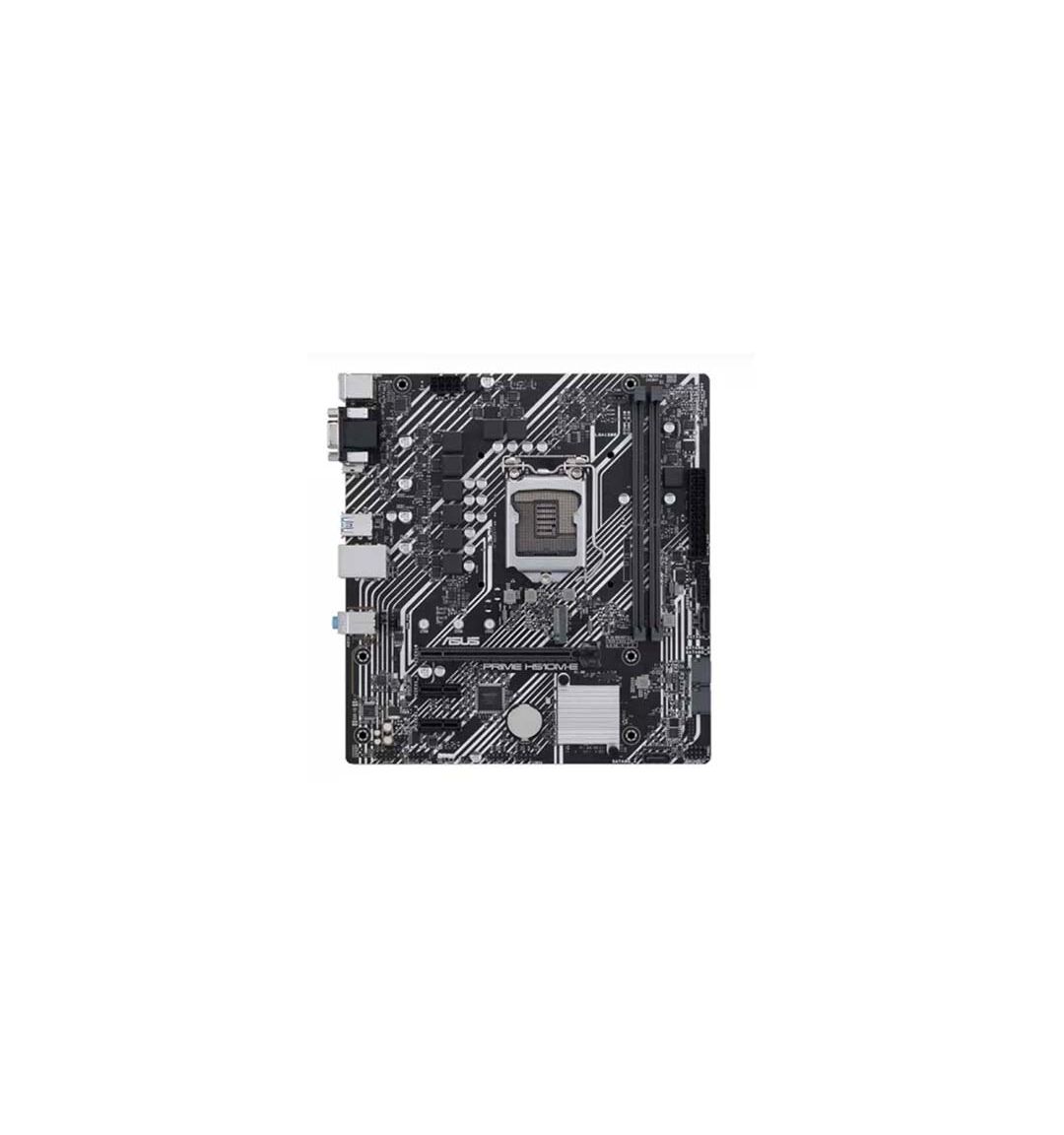

Asus PRIME H510M-E-SI DDR4 Motherboard
Asus PRIME H510M-E-SI Motherboard
SPECIFICATION
CPU | Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron |
Chipset | Intel® H510 Chipset |
Graphics | 1 x D-Sub |
Expansion Slots | Intel® 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel® 11th Gen processors support PCIe 4.0 x16 - Intel® 10th Gen processors support PCIe 3.0 x16 Intel® H510 Chipset 2 x PCIe 3.0 x1 slots |
PCI | 4.0 |
Memory Slots | 2 |
Memory Type | DDR4 |
USB | Rear USB: Total 4 ports 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB: Total 6 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
Audio | Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" |
Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
Form Factor | micro-atx |
Warranty: 03 Years
Nexus will be your first choice If you want to buy ASUS PRIME H510M-E-SI Motherboard in Bangladesh, Because we sell only Asus authorized original Motherboard. So you are at the right place to buy the right Asus Motherboard at the lowest price in Bangladesh.
Nexus Offers you ASUS PRIME H510M-E-SI Motherboard at the best price in Bangladesh, which is your budget-friendly Motherboard. Do you want to know what is the price of the ASUS PRIME H510M-E-SI Motherboard? and where you can get the Asus Motherboard at the lowest price in BD? Yes, it is Nexus. ASUS PRIME H510M-E-SI Motherboard is now available at Nexus, So Don’t Think more to buy ASUS PRIME H510M-E-SI Motherboard.
