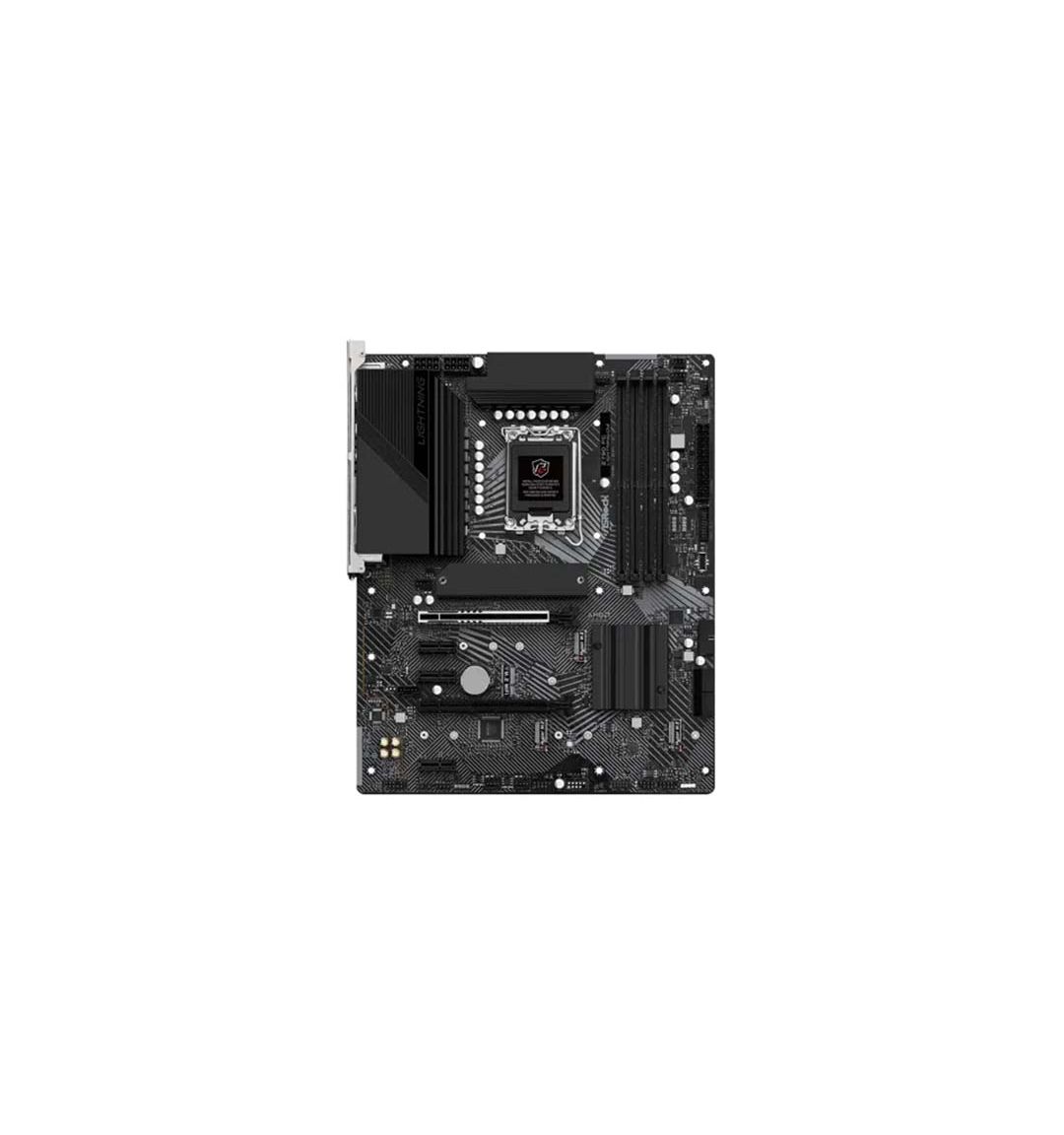

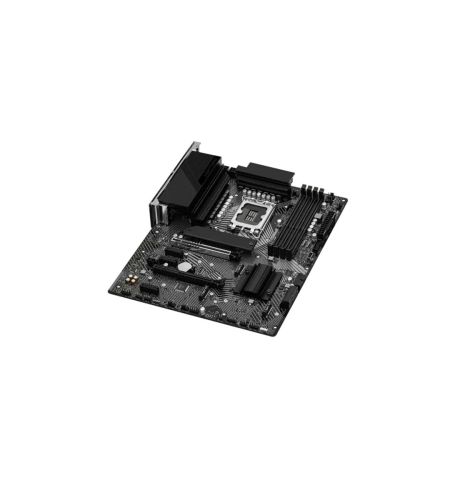

ASRock Z790 PG Lightning/D4 13th & 12th Gen DDR4 ATX Motherboard
ASRock Z790 PG Lightning/D4 Motherboard
SPECIFICATION
Specifications | |
Supported CPU | - Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700) - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology - Supports Intel Thermal Velocity Boost (TVB) - Supports Intel Adaptive Boost Technology (ABT) |
Chipset | Intel Z790 |
BIOS | 128Mb AMI UEFI Legal BIOS with GUI support |
Form Factor | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio |
Slots | |
PCI | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode - 3 x PCIe 3.0 x1 Slots (PCIE2, PCIE3 and PCIE5) - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) - Supports AMD CrossFire |
Memory | |
Type | DDR4 |
Slots | 4 x DDR4 DIMM Slots |
Supported Memory | - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC) - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel Extreme Memory Profile (XMP) 2.0 |
Maximum Memory | 128GB |
Graphics | |
Graphics | - Intel Xe Graphics Architecture (Gen 12) - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz |
Network & Connectivity | |
HDMI | 1 x HDMI Port |

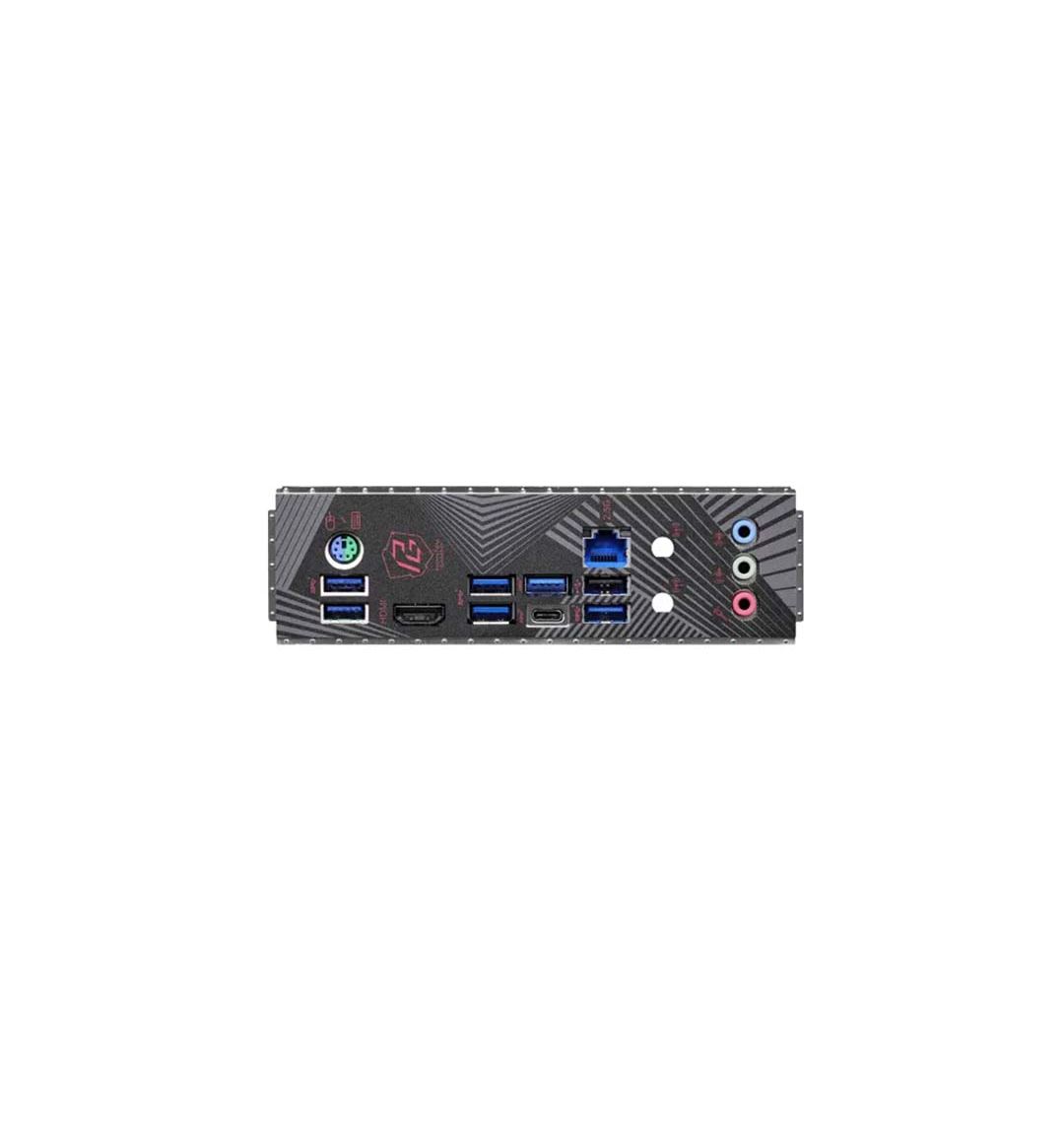

USB (s) | - 1 x USB 3.2 Gen2x2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 1 x USB 3.2 Gen1 Type-C (Front) - 9 x USB 3.2 Gen1 Type-A (5 Rear, 4 Front) - 3 x USB 2.0 (1 Rear, 2 Front) |
LAN Port (s) | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Phantom Gaming LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
Supported Storage | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 4 x SATA3 6.0 Gb/s Connectors |
RAID | - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
Audio | HD Audio Jacks: Line in / Front Speaker / Microphone |
Internal I/O Ports | - 1 x eDP Signal Connector - 1 x Power LED and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header |
TPM (Trusted Platform Module ) | 1 x SPI TPM Header |
Others Features | |
Special Features | Superb Productivity - PCIe Gen5 (Graphics) Rock-Solid Durability - 14+1+1 Power Phase, 50A Dr.MOS for VCore+GT - Pre-Installed I/O Shield Ultrafast Connectivity - 2.5G LAN EZ Update - ASRock Auto Driver Installer EZ Troubleshooter |
Bundled Software | Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - ASRock Phantom Gaming LAN Software - ASRock Polychrome SYNC UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer |
Warranty: 03 Years
Nexus will be your first choice If you want to buy ASRock Z790 PG Lightning/D4 Motherboard in Bangladesh, Because we sell only ASRock authorized original Motherboard. So you are at the right place to buy the right ASRock Motherboard at the lowest price in Bangladesh.
Nexus Offers you ASRock Z790 PG Lightning/D4 Motherboard at the best price in Bangladesh, which is your budget-friendly Motherboard. Do you want to know what is the price of the Z790 PG Lightning/D4 Motherboard? and where you can get a ASRock Motherboard at the lowest price in BD? Yes, it is Nexus. ASRock Z790 PG Lightning/D4 Motherboard is now available at Nexus, So Don’t Think more to buy ASRock Z790 PG Lightning/D4 Motherboard.
