ASRock B760M-HDV/M.2 DDR5 Micro ATX 14th, 13th & 12th Gen Intel Motherboard
Please sign in so that we can notify you about a reply
Specification
| Supported CPU | - Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700) - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology - Supports Intel Thermal Velocity Boost (TVB) - Supports Intel Adaptive Boost Technology (ABT) |
| Chipset | Intel B760 |
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support |
| Form Factor | - Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| PCI | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Type | DDR5 |
| Slots | 2 |
| Supported Memory | - Dual Channel DDR5 Memory Technology - 2 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* - Supports Intel Extreme Memory Profile (XMP) 3.0 |
| Maximum Memory | 128GB |
| Graphics | - Intel Xe Graphics Architecture (Gen 12) - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz - 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz |
| HDMI | 1x HDMI |
| Display Port (s) | 1x DisplayPort |
| D-Sub (s) | 1x D-Sub |
| USB (s) | - 1 x USB 3.2 Gen1 Type-C (Rear) - 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) - 6 x USB 2.0 (2 Rear, 4 Front) |
| LAN Port (s) | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
| Supported Storage | Chipset: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) modes** - 4 x SATA3 6.0 Gb/s Connectors * Supports Intel Volume Management Device (VMD) Supports NVMe SSD as boot disks |
| RAID | - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |

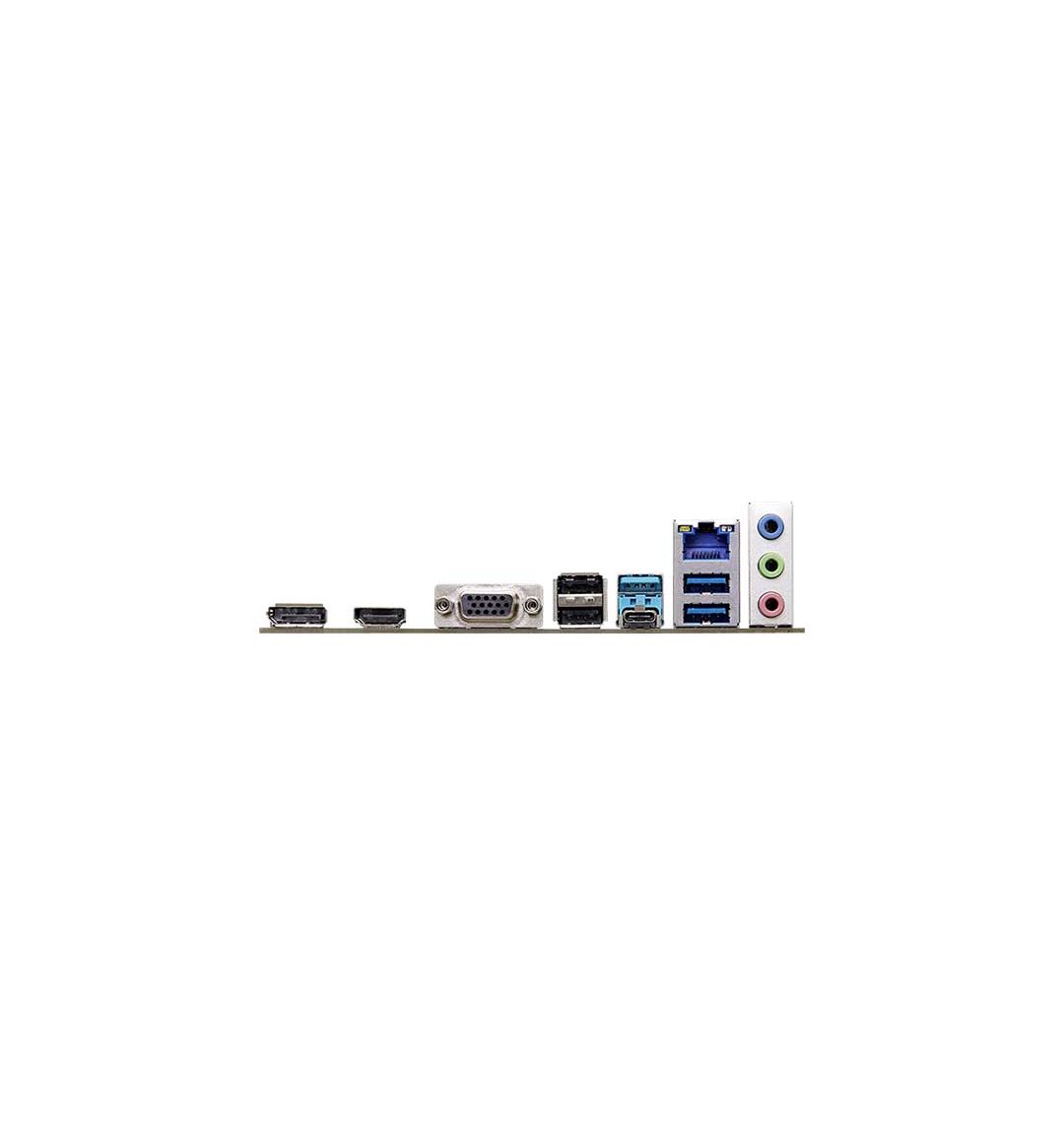

| Internal I/O Ports | Rear Panel I/O - 2 x Antenna Mounting Points - 1 x D-Sub Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 3 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone Connector - 1 x Chassis Intrusion and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |
| TPM (Trusted Platform Module ) | - 1 x SPI TPM Header |
| Special Features | Superb Productivity - Dual Channel DDR5 Rock-Solid Durability - 7+1+1 Power Phase -ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology Ultrafast Connectivity - 2.5G LAN EZ Update - ASRock Auto Driver Installer |
| Bundled Software | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer |
| Warranty Information | |
| Manufacturing Warranty | 3 years |

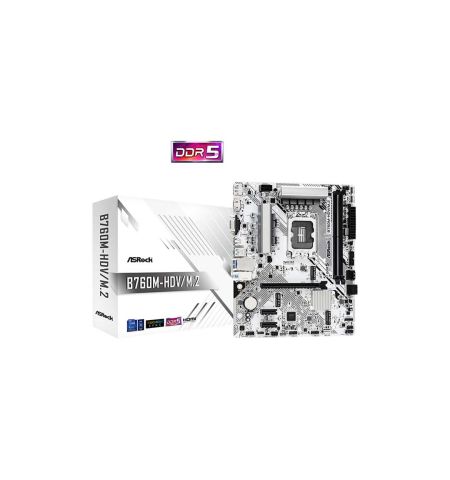

ASRock B760M-HDV/M.2 DDR5 Micro ATX Motherboard
Overview
Elevate your PC build with the ASRock B760M-HDV/M.2 DDR5 Micro ATX Motherboard, designed for high performance and cutting-edge technology. This motherboard supports the latest 14th, 13th, and 12th Gen Intel® Core™ processors, offering a robust platform for demanding applications and gaming.
Key Features
- Advanced CPU Support: Compatible with 14th, 13th, and 12th Gen Intel® Core™ processors (LGA1700) and supports Intel® Hybrid Technology, Turbo Boost Max 3.0, Thermal Velocity Boost (TVB), and Adaptive Boost Technology (ABT).
- Powerful Chipset: Utilizes the Intel® B760 chipset for enhanced performance and stability.
- High-Speed Memory: Equipped with 2 DDR5 memory slots supporting up to 128GB and memory speeds up to 7200+(OC)*. Supports Intel Extreme Memory Profile (XMP) 3.0 for overclocking.
- Graphics Excellence: Features Intel Xe Graphics Architecture with HDMI 2.1 and DisplayPort 1.4 outputs, supporting resolutions up to 8K for high-quality visuals.
- Superior Connectivity: Includes 2.5G LAN for fast network speeds and a variety of USB ports, including USB 3.2 Gen1 Type-C, ensuring quick data transfer and peripheral connectivity.
- Ample Storage Options: Offers 1 Hyper M.2 and 1 Ultra M.2 slots along with 4 SATA3 connectors, supporting NVMe SSDs and RAID configurations for versatile storage solutions.
- Enhanced Audio and Cooling: Provides 7.1 CH HD Audio with Realtek ALC897 Codec and multiple fan headers for optimized cooling and system stability.
- User-Friendly BIOS and Software: Comes with ASRock’s UEFI BIOS for easy setup and management, and includes useful software like A-Tuning and Polychrome SYNC for customization and performance tuning.
Why Choose the ASRock B760M-HDV/M.2 DDR5?
The ASRock B760M-HDV/M.2 DDR5 motherboard is your ideal choice for a high-performance computing experience. It combines the latest Intel® technologies with superior memory support, high-speed connectivity, and extensive storage options, all within a compact Micro ATX form factor. Whether you’re building a powerful gaming rig or a productivity workstation, this motherboard delivers reliability, speed, and efficiency.
Frequently Asked Questions (FAQ)
1. What CPUs are compatible with the ASRock B760M-HDV/M.2 DDR5 motherboard?
The ASRock B760M-HDV/M.2 DDR5 motherboard supports 14th, 13th, and 12th Gen Intel® Core™ processors with an LGA1700 socket. It also supports Intel® Hybrid Technology, Turbo Boost Max 3.0, Thermal Velocity Boost (TVB), and Adaptive Boost Technology (ABT).
2. How much memory can the motherboard support?
The motherboard has 2 DDR5 DIMM slots and supports up to 128GB of memory. It can handle memory speeds up to 7200+(OC)* and supports Intel Extreme Memory Profile (XMP) 3.0 for overclocking.
3. What are the graphics options on this motherboard?
The ASRock B760M-HDV/M.2 DDR5 motherboard includes Intel Xe Graphics Architecture. It offers 1 x HDMI 2.1, 1 x DisplayPort 1.4, and 1 x D-Sub. HDMI supports up to 4K resolution, while DisplayPort supports up to 8K resolution.
4. What types of storage does this motherboard support?
The motherboard supports various storage options, including:
- 1 x Hyper M.2 slot for PCIe Gen4x4 NVMe SSDs
- 1 x Ultra M.2 slot for PCIe Gen3x4 NVMe SSDs
- 4 x SATA3 connectors for additional storage devices
5. Does the motherboard support RAID configurations?
Yes, the ASRock B760M-HDV/M.2 DDR5 motherboard supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices.
6. What networking capabilities does this motherboard have?
The motherboard features a 2.5G LAN port (10/100/1000/2500 Mb/s) powered by Dragon RTL8125BG. It supports Dragon 2.5G LAN Software for enhanced network management and performance.
7. How many USB ports are available?
The motherboard offers a variety of USB ports:
- 1 x USB 3.2 Gen1 Type-C (Rear)
- 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
- 6 x USB 2.0 (2 Rear, 4 Front)
8. What is the form factor of this motherboard?
The ASRockB760M-HDV/M.2 DDR5 is a Micro ATX motherboard, measuring 9.6 inches by 7.9 inches (24.4 cm x 20.1 cm).
9. Does this motherboard come with a warranty?
Yes, the ASRock B760M-HDV/M.2 DDR5 motherboard comes with a 3-year manufacturing warranty.
10. What additional features does this motherboard include?
The motherboard includes several features for enhanced performance and customization, such as:
- 7+1+1 Power Phase for stability
- ASRock Intel® 4-Layer Memory POOL Technology
- 2.5G LAN for fast network speeds
- ASRock Polychrome SYNC for RGB lighting customization
- ASRock EZ Update and A-Tuning software for easy BIOS updates and performance tuning
