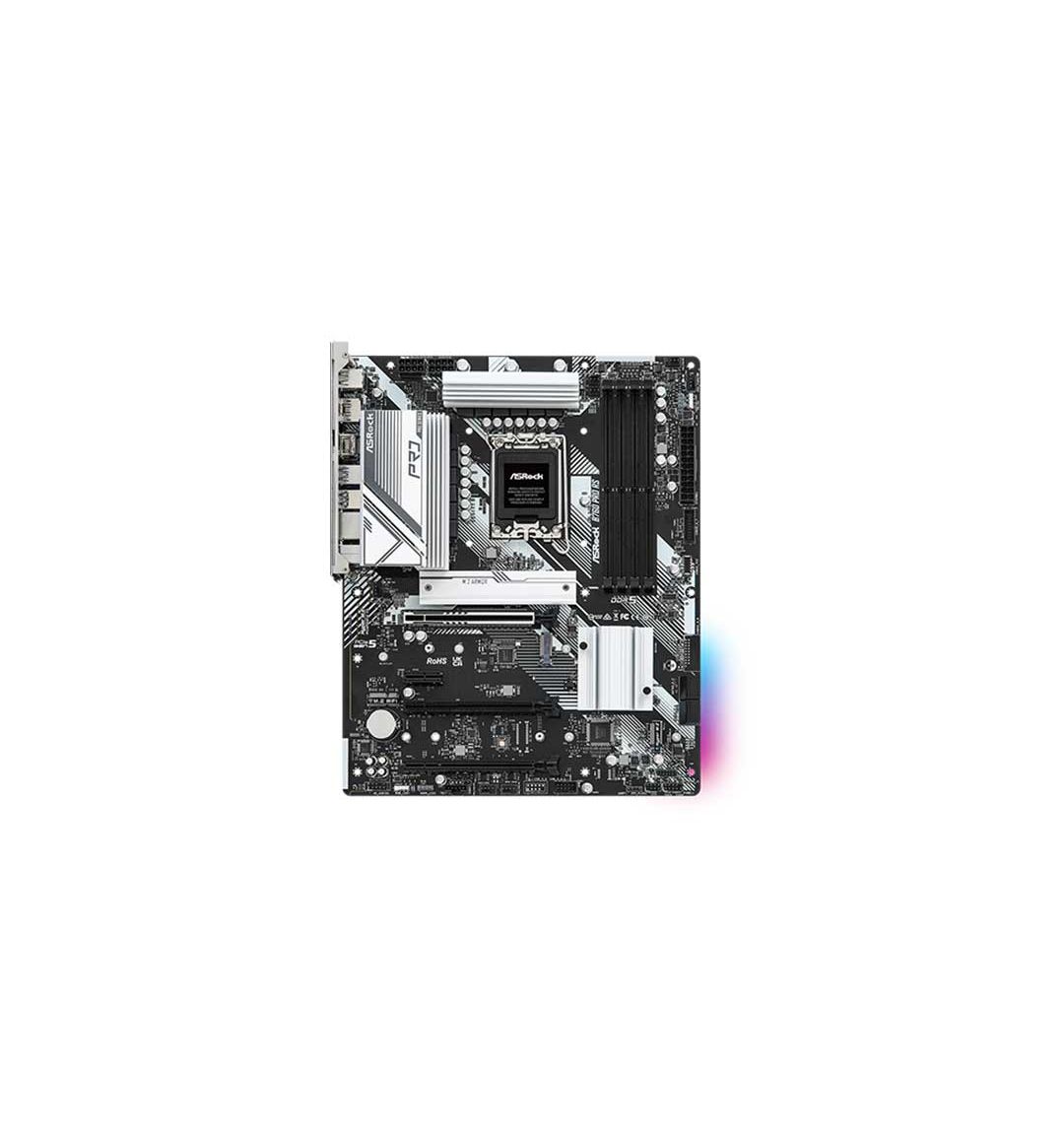

ASRock B760 Pro RS DDR5 ATX Motherboard

Basic Information

Supported CPU

Supports 14th, 13th Gen & 12th Gen and next gen Intel Core Processors (LGA1700)

Supports Intel Hybrid Technology

Supports Intel Turbo Boost Max 3.0 Technology

Supports Intel Thermal Velocity Boost (TVB)

Supports Intel Adaptive Boost Technology (ABT)

Chipset

Intel B760

BIOS

128Mb AMI UEFI Legal BIOS with GUI support

Form Factor

ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

Audio

7.1 CH HD Audio (Realtek ALC897 Audio Codec)

Nahimic Audio

Expansion Slots

PCI

CPU:

- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:

- 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*

- 1 x PCIe 3.0 x16 Slot (PCIE4), supports x1 mode*

- 1 x PCIe 3.0 x1 Slot (PCIE2)*

- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)

- Supports AMD CrossFire

Memory

Type

DDR5

Slots

4

Supported Memory

Dual Channel DDR4 Memory Technology

4 x DDR5 DIMM Slots

Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*

Supports Intel Extreme Memory Profile (XMP) 2.0

1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively.

1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.

2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively.

2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.

Maximum Memory

192GB

Graphics

Graphics

Intel Xe Graphics Architecture (Gen 12)

1 x eDP 1.4, supports max. resolution up to Full HD 60Hz

1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz

1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

Connector & Ports

HDMI

1x HDMI

Display Port (s)

1 x eDP

1x DisplayPort

USB (s)

2 x USB 3.2 Gen2 Type-C (1 Rear, 1 Front)

1 x USB 3.2 Gen2 Type-A (Rear)

6 x USB 3.2 Gen1 (4 Rear, 2 Front)

4 x USB 2.0 (2 Rear, 2 Front)

* All USB ports support ESD Protection

LAN Port (s)

2.5 Gigabit LAN 10/100/1000/2500 Mb/s

Dragon RTL8125BG

Supports Dragon 2.5G LAN Software

- Smart Auto Adjust Bandwidth Control

- Visual User Friendly UI

- Visual Network Usage Statistics

- Optimized Default Setting for Game, Browser, and Streaming Modes

- User Customized Priority Control

Supported Storage

CPU:

- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

Chipset:

- 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*

- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

- 4 x SATA3 6.0 Gb/s Connectors

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Audio

HD Audio Jacks: Line in / Front Speaker / Microphone

Internal I/O Ports

1 x eDP Signal Connector

1 x Power LED and Speaker Header

2 x RGB LED Headers

2 x Addressable LED Headers

1 x CPU Fan Connector (4-pin)

1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)

5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)

1 x 24 pin ATX Power Connector

2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)

1 x Front Panel Audio Connector

1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)

1 x USB 2.0 Header (Supports 2 USB 2.0 ports)

1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)

TPM (Trusted Platform Module )

1 x SPI TPM Header

Others

Special Features

Superb Productivity

- PCIe Gen5 (Graphics)

- Dual Channel DDR5

Rock-Solid Durability

- 10+1+1 Power Phase, 50A Dr.MOS for VCore+GT

- Pre-Installed I/O Shield

Ultrafast Connectivity

- 2.5G LAN

EZ Update

- ASRock Auto Driver Installer

EZ Troubleshooter

- ASRock Post Status Checker

Bundled Software

Software

- ASRock Motherboard Utility (A-Tuning)

- ASRock Dragon 2.5G LAN Software

- ASRock Polychrome SYNC*

UEFI

- ASRock EZ Mode

- ASRock Full HD UEFI

- ASRock My Favorites in UEFI

- ASRock Auto Driver Installer

- ASRock Instant Flash

- ASRock Easy RAID Installer

Warranty Information

Manufacturing Warranty

3 years
