ASRock B650M Pro RS WiFi AMD AM4 Motherboard

Specification

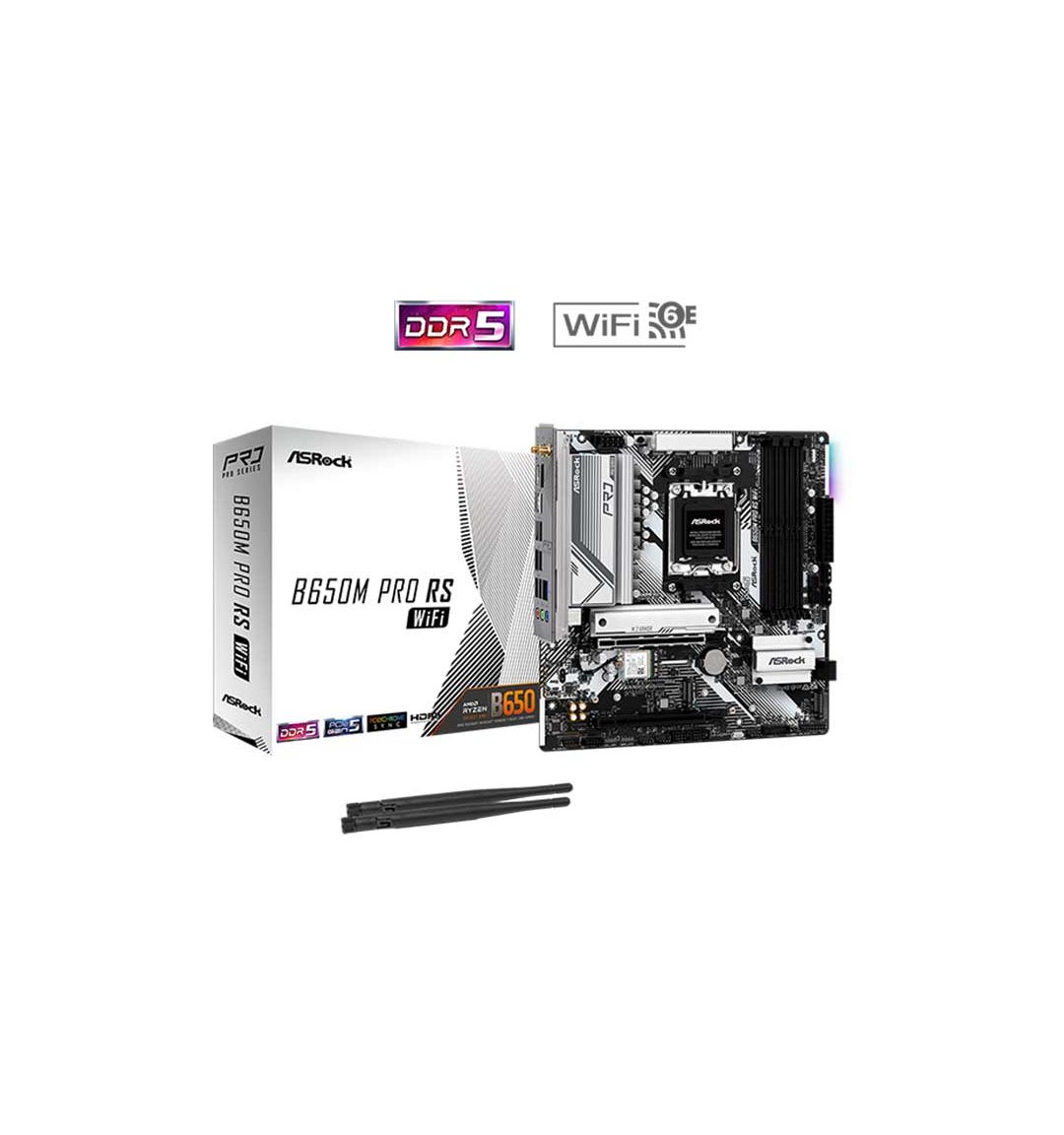

ASRock B650M Pro RS WiFi AM5 Micro ATX Motherboard

Product Overview

The ASRock B650M Pro RS WiFi AM5 Micro ATX Motherboard is a high-performance motherboard designed for the latest AMD Ryzen™ processors. With its powerful features and advanced connectivity options, it provides a solid foundation for both gaming and productivity.

Key Features

• Support for Latest AMD Processors: Compatible with AMD Socket AM5 Ryzen™ 9000, 8000, and 7000 Series processors, ensuring you have the power to handle demanding tasks and applications.
• AMD B650 Chipset: This motherboard is built on the AMD B650 chipset, offering a robust and stable platform for your system.
• High-Speed Memory Support: Equipped with four DDR5 DIMM slots, it supports up to 256GB of dual-channel DDR5 memory with speeds up to 7200+(OC). Ideal for high-performance tasks and gaming.
• Integrated Graphics: Enjoy integrated AMD RDNA™ graphics with HDMI 2.1 and DisplayPort 1.4, supporting resolutions up to 4K at 120Hz for stunning visuals.
• Versatile Storage Options:
  • Blazing Fast M.2 Storage: 1 x M.2 Socket for PCIe Gen5x4 storage, delivering incredibly fast data transfer speeds.
  • Additional M.2 and SATA Slots: Additional M.2 sockets for PCIe Gen4x4 and PCIe Gen4x2 storage, plus 4 SATA3 connectors for traditional storage solutions.
• Advanced Networking:
  • 2.5 Gigabit LAN: For ultra-fast wired network speeds.
  • Wi-Fi 6E & Bluetooth 5.2: Integrated 802.11ax Wi-Fi 6E module and Bluetooth 5.2 for top-tier wireless connectivity and speed.
• Rich Audio Experience: 7.1 CH HD Audio with Realtek ALC897 codec and Nahimic Audio for immersive sound quality.
• Expansion Flexibility:
  • PCIe Slots: 1 x PCIe 4.0 x16 slot and 1 x PCIe 3.0 x16 slot for graphics cards and other expansion needs.
  • M.2 WiFi/BT Slot: Dedicated M.2 slot for adding PCIe WiFi and Bluetooth modules.

Design & Build Quality

• Micro ATX Form Factor: Compact size (9.6-in x 9.6-in) fits easily into most cases, while still offering full-sized performance.
• 2oz Copper PCB: Enhanced heat dissipation for improved system stability and longevity.
• Durable Power Design: 8+2+1 power phase with 50A Dr.MOS components for reliable and stable power delivery.

Connectivity

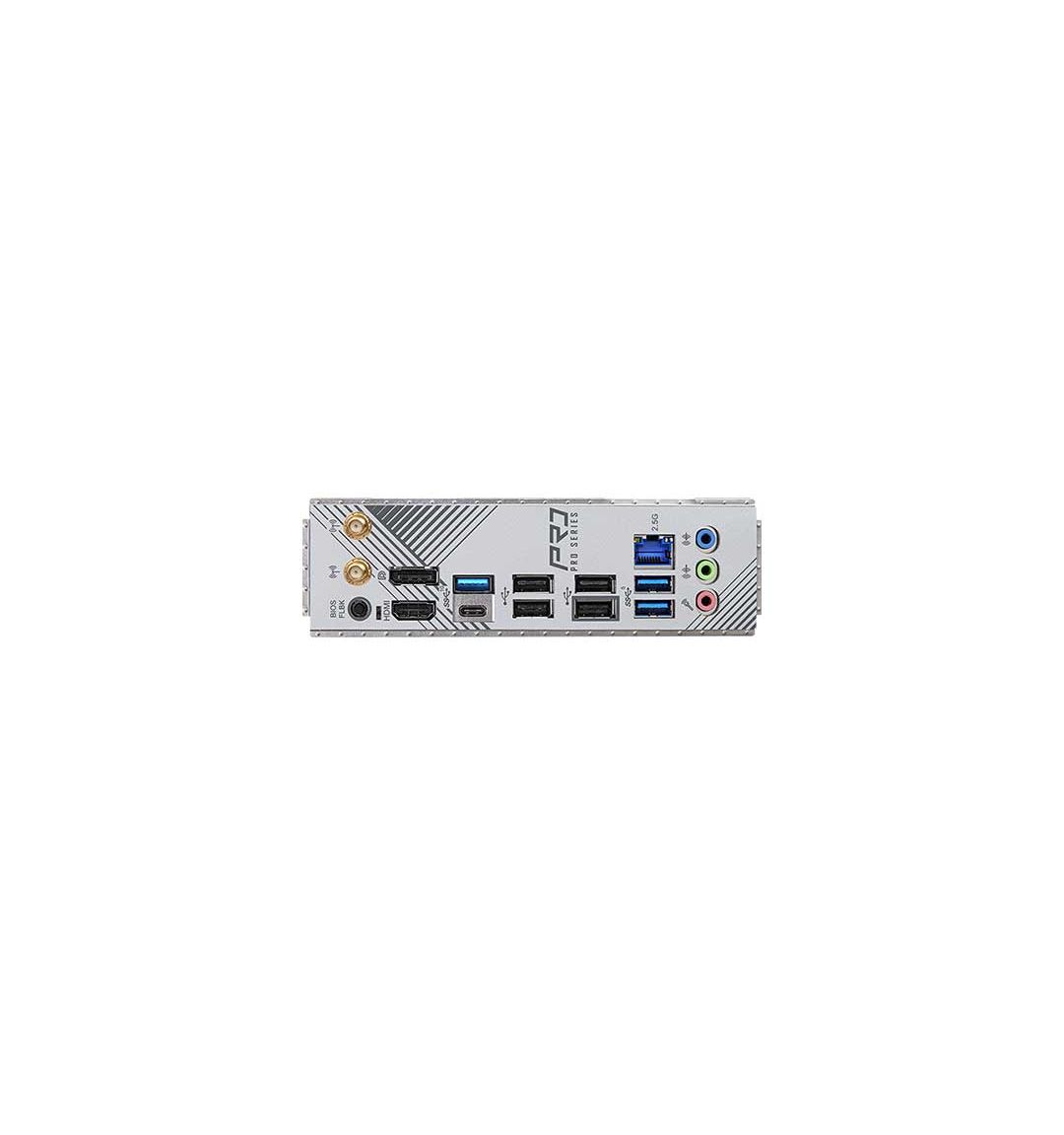

• Rear I/O Ports:
  • 1 x HDMI Port
  • 1 x DisplayPort 1.4
  • 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
  • 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
  • 2 x USB 3.2 Gen1 Ports
  • 4 x USB 2.0 Ports
  • 1 x RJ-45 LAN Port
  • 1 x BIOS Flashback Button
  • HD Audio Jacks (Line in, Front Speaker, Microphone)
  • 2 x Antenna Mounting Points
• Internal Connectors:
  • 1 x RGB LED Header
  • 3 x Addressable LED Headers
  • Multiple fan headers for CPU and chassis fans
  • Front Panel and USB Headers including Type-C support

Software & Utilities

• Bundled Software: Includes ASRockMotherboard Utility (A-Tuning), Dragon 2.5G LAN Software, and Polychrome SYNC for customizing your system’s performance and aesthetics.
• UEFI BIOS: 256Mb AMI UEFI BIOS with GUI support, featuring ASRock Full HD UEFI, Instant Flash, and Auto Driver Installer for an easy setup experience.

Warranty

• 3-Year Warranty: Provides peace of mind with a three-year warranty for reliable performance and durability.

Why Choose the ASRock B650M Pro RS WiFi?

1. Future-Proof Performance: The ASRock B650M Pro RS WiFi supports AMD's latest Socket AM5 Ryzen™ 9000, 8000, and 7000 Series processors, ensuring your system remains cutting-edge and capable of handling future applications and games.

2. High-Speed Memory Support: With four DDR5 DIMM slots, this motherboard supports up to 256GB of high-speed DDR5 memory, reaching speeds of up to 7200+(OC). This provides exceptional performance for gaming, content creation, and multitasking.

3. Blazing Fast Storage Options:

• PCIe Gen5 M.2 Socket: Experience lightning-fast data transfer with support for PCIe Gen5x4 storage devices.
• Additional M.2 and SATA Slots: Versatile storage options with PCIe Gen4x4, PCIe Gen4x2, and SATA3 connectors, allowing for a mix of high-speed NVMe and traditional storage solutions.

4. Advanced Connectivity:

• 2.5 Gigabit LAN: Enjoy ultra-fast wired network speeds for lag-free gaming and smooth streaming.
• Wi-Fi 6E & Bluetooth 5.2: Integrated Wi-Fi 6E and Bluetooth 5.2 support the latest wireless technologies, providing faster, more reliable connections and enhanced wireless performance.

5. Exceptional Graphics Support: Integrated AMD RDNA™ graphics with HDMI 2.1 and DisplayPort 1.4 ensure you can achieve stunning visuals and support resolutions up to 4K at 120Hz, ideal for high-definition gaming and multimedia.

6. Robust Audio Experience: Featuring 7.1 CH HD Audio with Realtek ALC897 and Nahimic Audio, this motherboard delivers immersive sound quality for gaming, movies, and music.

7. Durable and Reliable Build:

• 2oz Copper PCB: Enhanced heat dissipation for better system stability.
• 8+2+1 Power Phase Design: Provides stable and reliable power delivery with high-quality 50A Dr.MOS components.

8. Comprehensive Expansion Options:

• PCIe Slots: One PCIe 4.0 x16 slot and one PCIe 3.0 x16 slot for high-performance GPUs and expansion cards.
• M.2 WiFi/BT Slot: Dedicated slot for adding WiFi and Bluetooth modules, offering flexibility and future upgrade options.

9. User-Friendly Features:

• BIOS Flashback Button: Easily update your BIOS with this convenient feature.
• ASRock Auto Driver Installer: Simplifies the driver installation process, saving you time and effort.
• RGB & Addressable LED Headers: Customize your system's lighting with multiple LED headers.

Frequently Asked Questions (FAQ) - ASRock B650M Pro RS WiFi

1. What processors are supported by the ASRock B650M Pro RS WiFi? The ASRock B650M Pro RS WiFi supports AMD Socket AM5 Ryzen™ 9000, 8000, and 7000 Series processors.

2. What type of memory does this motherboard support? This motherboard supports DDR5 memory with four DIMM slots. It can handle up to 256GB of DDR5 memory, with speeds up to 7200+(OC). It also supports DDR5 ECC/non-ECC, un-buffered memory.

3. What are the storage options available on this motherboard?

• 1 x PCIe Gen5x4 M.2 Slot
• 1 x PCIe Gen4x4 M.2 Slot
• 1 x PCIe Gen4x2 M.2 Slot
• 4 x SATA3 6.0 Gb/s Connectors

4. Does the ASRock B650M Pro RS WiFi support RAID configurations? Yes, it supports RAID 0, RAID 1, and RAID 10 for both SATA storage devices and M.2 NVMe storage devices.

5. What connectivity options does the motherboard offer?

• 2.5 Gigabit LAN
• 802.11ax Wi-Fi 6E
• Bluetooth 5.2

6. What audio features are included? The motherboard includes 7.1 CH HD Audio with Realtek ALC897 Audio Codec and Nahimic Audio for an enhanced audio experience.

7. How many USB ports are available?

• 1 x USB 3.2 Gen2 Type-C (Rear)
• 1 x USB 3.2 Gen2 Type-A (Rear)
• 1 x USB 3.2 Gen1 Type-C (Front)
• 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
• 8 x USB 2.0 (4 Rear, 4 Front)

8. What graphics outputs are supported?

• 1 x HDMI 2.1
• 1 x DisplayPort 1.4

9. Is there any built-in software to manage the motherboard? Yes, it includes ASRock Motherboard Utility (A-Tuning), ASRock Dragon 2.5G LAN Software, and ASRock Polychrome SYNC for system management and customization.

10. What special features does this motherboard have?

• PCIe Gen5 M.2 support
• Dual Channel DDR5 memory
• 8+2+1 Power Phase design with 50A Dr.MOS
• Pre-Installed I/O Shield
• BIOS Flashback Button
• ASRock Auto Driver Installer
• RGB & Addressable LED Headers

11. What is the warranty period for the ASRock B650M Pro RS WiFi? The motherboard comes with a three-year warranty.

12. Can this motherboard support additional WiFi and Bluetooth modules? Yes, it has an M.2 Socket (Key E) for adding WiFi/BT PCIe modules.

13. What is the form factor of this motherboard? The ASRock B650M Pro RS WiFi is a Micro ATX form factor motherboard, measuring 9.6-in x 9.6-in (24.4 cm x 24.4 cm).
