ASROCK B650M Pro RS AMD B650 Chipset Motherboard
Please sign in so that we can notify you about a reply
Specification
| Basic Information | |
| Supported CPU | Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors |
| Chipset | AMD B650 |
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support |
| Form Factor | - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - 2oz Copper PCB |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio |
| Expansion Slots | |
| PCI | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode* Chipset: - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - Supports AMD CrossFire™ - 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
| Memory | |
| Type | DDR5 |
| Slots | - 4 x DDR5 DIMM Slots |
| Supported Memory | - Dual Channel DDR5 Memory Technology - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)* - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| Maximum Memory | Max. 256GB |
| Graphics | |
| Graphics | Integrated AMD RDNA graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
| Connector & Ports | |
| HDMI | 1x HDMI |
| Display Port (s) | 1x DisplayPort 1.4 |
| USB (s) | - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 1 x USB 3.2 Gen1 Type-C (Front) - 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front) |
| LAN Port (s) | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
| Supported Storage | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors |
| RAID | - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| Audio | 3 x Audio jacks |
| Internal I/O Ports | Rear Panel I/O - 2 x Antenna Mounting Points - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 2 x USB 3.2 Gen1 Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone Connector - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header |
| TPM (Trusted Platform Module ) | - 1 x SPI TPM Header |
| Others | |
| Special Features | Superb Productivity - PCIe Gen5 (M.2) - Dual Channel DDR5 Rock-Solid Durability - 8+2+1 Power Phase, 50A Dr.MOS - Pre-Installed I/O Shield Ultrafast Connectivity - 2.5G LAN EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer |
| Bundled Software | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash |
| Warranty Information | |
| Manufacturing Warranty | 3 Years Warranty |

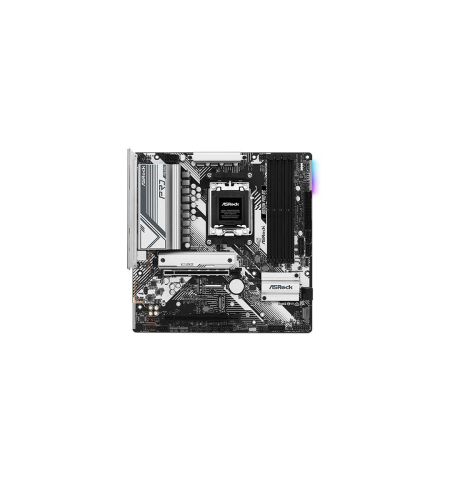

ASRock B650M Pro RS AM5 Micro ATX Motherboard
Overview
The ASRock B650M Pro RS AM5 Micro ATX Motherboard offers an exceptional foundation for your next build, combining cutting-edge technology with robust performance. Designed to support AMD Ryzen™ 9000, 8000, and 7000 series processors, this motherboard is engineered for both high productivity and gaming enthusiasts.
Key Features
- Cutting-Edge CPU Support: Compatible with AMD Socket AM5 Ryzen™ 9000, 8000, and 7000 series processors, ensuring you have the power to tackle the latest applications and games.
- Advanced Memory Support: Equipped with 4 DDR5 DIMM slots, the B650M Pro RS supports dual-channel DDR5 memory up to 7200+(OC) and a maximum capacity of 256GB. It also supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) modules.
- Superior Graphics Integration: Integrated AMD RDNA™ graphics deliver high-quality visuals. The motherboard features HDMI 2.1 and DisplayPort 1.4, supporting resolutions up to 4K 120Hz for immersive gaming and multimedia experiences.
- High-Speed Storage Solutions:
- Blazing M.2 Socket (Gen5): For lightning-fast NVMe SSDs with up to 128 Gb/s speeds.
- Hyper M.2 Socket (Gen4): Supports PCIe Gen4x4 for high-speed storage.
- M.2 Socket (Gen4x2): Additional support for PCIe Gen4x2 devices.
- 4 x SATA3 Connectors: For traditional SATA storage solutions.
- Robust Networking and Connectivity:
- 2.5G LAN: Powered by Dragon RTL8125BG, featuring Phantom Gaming LAN Software for optimized network performance.
- Bluetooth 5.2: High-speed class II for seamless wireless connectivity.
- Wi-Fi 6E: (Available in some models) For ultra-fast wireless networking.
- Comprehensive I/O Ports:
- USB 3.2 Gen2 Type-C & Type-A Ports: For high-speed data transfer and device connectivity.
- HDMI & DisplayPort: Multiple options for connecting displays.
- BIOS Flashback Button: For easy BIOS updates.
- Enhanced Audio Experience: 7.1 CH HD Audio with Realtek ALC897 and Nahimic Audio technology for crystal-clear sound.
Form Factor
- Micro ATX Dimensions: 9.6-in x 9.6-in (24.4 cm x 24.4 cm) – Compact yet powerful, fitting into a wide range of cases.
Bundled Software
- ASRock Phantom Gaming Tuning: Customize your system’s performance.
- ASRock Phantom Gaming LAN Software: Optimize network settings for gaming.
- ASRock Polychrome SYNC: For RGB lighting customization.
Unique Features
- PCIe Gen5 Support: Future-proof your system with next-gen storage and expansion options.
- Rock-Solid Durability: 6+2+1 Power Phase with 50A Dr.MOS for stable and reliable power delivery.
- Ultrafast Connectivity: 2.5G LAN and optional Wi-Fi 6E for high-speed internet access.
- EZ Update: Includes BIOS Flashback Button and ASRock Auto Driver Installer for effortless updates.
- EZ Troubleshooter: ASRock Post Status Checker for diagnosing and resolving system issues.
Why Choose the ASRock B650M Pro RS?
- Advanced CPU Compatibility: Support for AMD Socket AM5 Ryzen™ 9000, 8000, and 7000 series processors ensures you’re ready for the latest advancements in CPU technology. Whether you’re gaming or creating, this motherboard delivers the power you need.
- Future-Proof Memory Support: With 4 DDR5 DIMM slots, the B650M Pro RS supports dual-channel DDR5 memory up to 7200+(OC) and a maximum capacity of 256GB. It also accommodates Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules, allowing you to push your system to its limits.
- Exceptional Graphics and Multimedia: Integrated AMD RDNA™ graphics and support for HDMI 2.1 and DisplayPort 1.4 ensure stunning visuals. Enjoy resolutions up to 4K 120Hz for a breathtaking gaming and multimedia experience.
- Blazing Fast Storage:
- Blazing M.2 Socket (PCIe Gen5): For ultra-fast NVMe SSDs with speeds up to 128 Gb/s.
- Hyper M.2 Socket (PCIe Gen4): Provides additional support for high-speed storage.
- M.2 Socket (PCIe Gen4x2): Extra space for Gen4x2 NVMe SSDs.
- 4 x SATA3 Connectors: For versatile storage solutions.
- Robust Networking and Connectivity:
- 2.5G LAN: Powered by Dragon RTL8125BG with Phantom Gaming LAN Software for optimized network performance.
- Bluetooth 5.2: Ensures reliable and high-speed wireless connectivity.
- Wi-Fi 6E (Available in some models): Offers superior wireless speeds and connectivity.
- Comprehensive I/O Options:
- USB 3.2 Gen2 Ports: Including Type-C and Type-A for rapid data transfer and device connection.
- HDMI & DisplayPort: Multiple display connection options.
- BIOS Flashback Button: Simplifies BIOS updates.
- Premium Audio: Enjoy 7.1 CH HD Audio with Realtek ALC897 and Nahimic Audio technology for rich, immersive sound.
FAQ for ASRock B650M Pro RS AM5 Micro ATX Motherboard
1. What processors are compatible with the ASRock B650M Pro RS motherboard?
The ASRock B650M Pro RS supports AMD Socket AM5 Ryzen™ 9000, 8000, and 7000 series processors. It is designed to work with the latest AMD CPUs, ensuring top-notch performance for both gaming and productivity tasks.
2. How much RAM can the ASRock B650M Pro RS motherboard support?
This motherboard features 4 DDR5 DIMM slots and supports up to 256GB of DDR5 memory. It supports dual-channel DDR5 memory technology and is compatible with Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules.
3. What are the storage options available on this motherboard?
The ASRock B650M Pro RS provides:
- Blazing M.2 Socket (PCIe Gen5): For NVMe SSDs with speeds up to 128 Gb/s.
- Hyper M.2 Socket (PCIe Gen4): Additional high-speed storage support.
- M.2 Socket (PCIe Gen4x2): For Gen4x2 NVMe SSDs.
- 4 x SATA3 6.0 Gb/s Connectors: For traditional SATA storage devices.
4. Does the ASRock B650M Pro RS support RAID configurations?
Yes, the motherboard supports RAID 0, RAID 1, and RAID 10 for both SATA and M.2 NVMe storage devices. Note that RAID 10 for M.2 NVMe requires additional M.2 NVMe expansion cards.
5. What kind of networking features does this motherboard offer?
The ASRock B650M Pro RS includes:
- 2.5 Gigabit LAN: Powered by Dragon RTL8125BG for high-speed network connectivity.
- Bluetooth 5.2: For fast and reliable wireless connectivity.
- Optional Wi-Fi 6E: (Available in some models) For advanced wireless networking capabilities.

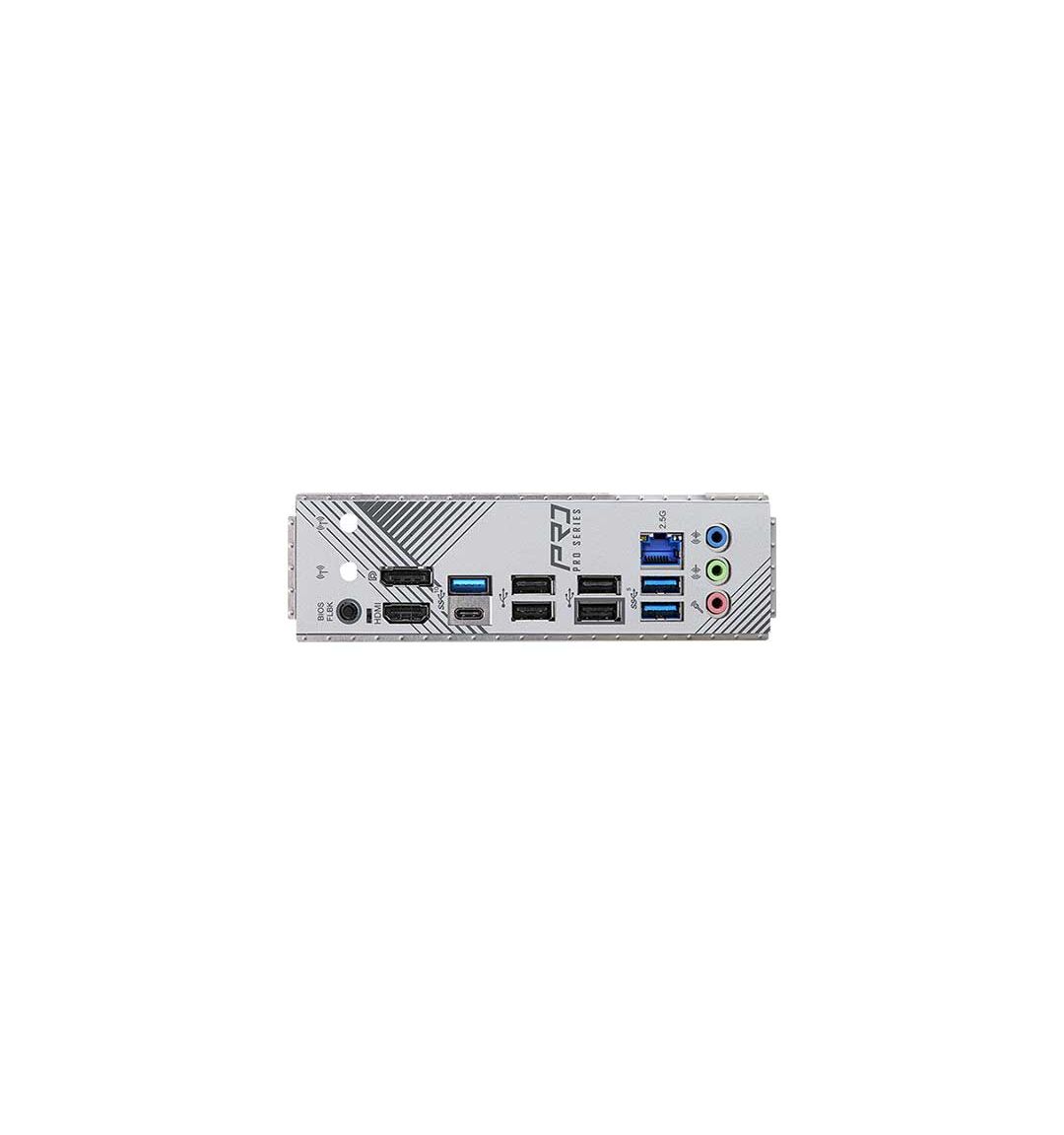

6. What I/O ports are available on the rear panel of this motherboard?
The rear panel features:
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen2 Type-C Port
- 1 x USB 3.2 Gen2 Type-A Port
- 2 x USB 3.2 Gen1 Type-A Ports
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 2 x Antenna Ports
- 1 x BIOS Flashback Button
- HD Audio Jacks (Line in / Front Speaker / Microphone)
7. How do I update the BIOS on the ASRock B650M Pro RS motherboard?
The motherboard features a BIOS Flashback Button, which allows for easy BIOS updates without the need for a CPU or memory installed. Additionally, ASRock’s Auto Driver Installer can help with updating drivers.
8. Is there a warranty for the ASRock B650M Pro RS motherboard?
Yes, the ASRock B650M Pro RS comes with a 3-year warranty, providing you with peace of mind and support in case of any issues.
9. What is the form factor of this motherboard?
The ASRock B650M Pro RS has a Micro ATX form factor, with dimensions of 9.6-in x 9.6-in (24.4 cm x 24.4 cm), making it compatible with a variety of PC cases.
10. Can I use this motherboard for overclocking?
Yes, the ASRock B650M Pro RS supports overclocking with its DDR5 memory slots and Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules. The motherboard is designed to handle high-performance and overclocked systems.
