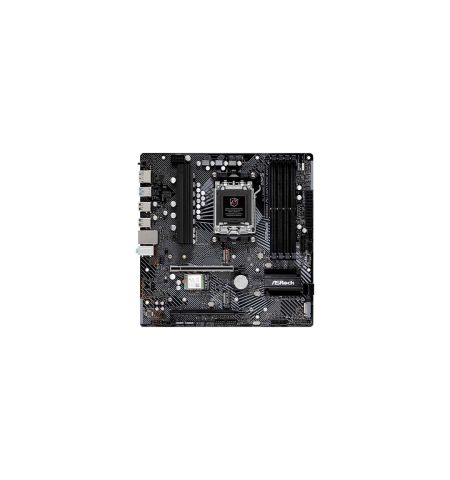

ASROCK B650M PG Lightning WIFI AMD B650 Chipset Motherboard
Specification
Basic Information | |
Supported CPU | - Supports AMD Socket AM5 Ryzem 9000, 8000 and 7000 Series Processors |
Chipset | AMD B650 |
BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support |
Form Factor | - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio |
Expansion Slots | |
PCI | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode Chipset: - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - Supports AMD CrossFire - 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
Memory | |
Type | DDR5 |
Slots | 4x DIMMs |
Supported Memory | - Dual Channel DDR5 Memory Technology - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC) - Max. capacity of system memory: 256GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
Maximum Memory | 256GB |
Graphics | |
Graphics | Integrated AMD RDNA graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
Connector & Ports | |
HDMI | 1 x HDMI Port |
Display Port (s) | 1 x DisplayPort 1.4 |
USB (s) | - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 1 x USB 3.2 Gen1 Type-C (Front) - 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front) |
LAN Port (s) | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Phantom Gaming LAN Software - Smart Auto Adjust Bandwidth Control - Visual User-Friendly UI - Visual Network Usage Statistics - Optimized Default Settings for Game, Browser, and Streaming Modes - User Customized Priority Control |
Wireless Communication module | - 802.11ax Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax - Supports Dual-Band 2x2 with extended 6GHz band* support - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.2 + High speed class II - Supports MU-MIMO |
Supported Storage | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors |
RAID | - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
Audio | HD Audio Jacks: Line in / Front Speaker / Microphone |
Internal I/O Ports | Rear Panel I/O - 2 x Antenna Mounting Points - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 2 x USB 3.2 Gen1 Type-A Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone Connector - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header |
TPM (Trusted Platform Module ) | - 1 x SPI TPM Header |
Others | |
Special Features | Superb Productivity - PCIe Gen5 (M.2) - Dual Channel DDR5 Rock-Solid Durability - 6+2+1 Power Phase, 50A Dr.MOS Ultrafast Connectivity - 2.5G LAN EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer |
Bundled Software | Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - ASRock Phantom Gaming LAN Software - ASRock Polychrome SYNC* UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash |
Warranty Information | |
Manufacturing Warranty | 3 Years |
ASRock B650M PG Lightning WIFI AMD B650 Motherboard
Experience Unparalleled Performance with the ASRock B650M PG Lightning WIFI
The ASRock B650M PG Lightning WIFI motherboard is engineered to bring out the best in your AMD Ryzen™ 9000, 8000, and 7000 series processors. Designed with cutting-edge features and robust durability, this Micro ATX motherboard is the perfect foundation for building a high-performance gaming or productivity rig.
Unleash the Power of DDR5
With support for dual-channel DDR5 memory technology, the ASRock B650M PG Lightning WIFI allows you to equip your system with up to 256GB of blazing-fast RAM. Whether you're a gamer, content creator, or power user, enjoy the benefits of faster data access and smoother multitasking. The motherboard also supports DDR5 ECC/non-ECC memory and is fully compatible with XMP and EXPO profiles for easy overclocking.
Next-Gen Graphics and Ultra-High Resolution
Featuring integrated AMD RDNA™ graphics, this motherboard delivers stunning visuals and supports up to 4K 120Hz through both HDMI 2.1 and DisplayPort 1.4 outputs. Whether you're watching movies, editing videos, or playing the latest games, you can expect crisp, vibrant visuals with support for HDR and HDCP 2.3.
Advanced Storage Options
The ASRock B650M PG Lightning WIFI is equipped with multiple M.2 slots, including a Blazing M.2 socket that supports PCIe Gen5x4, ensuring your storage runs at peak speed. With support for RAID configurations, you can set up your drives for maximum speed or data redundancy, making this motherboard ideal for any data-intensive applications.
Rock-Solid Network Performance
Stay connected with the high-speed 2.5 Gigabit LAN, powered by the Dragon RTL8125BG chipset. Whether you're gaming, streaming, or browsing, this motherboard ensures low latency and high data transfer speeds. Additionally, the built-in Bluetooth 5.2 and Wi-Fi 6E offer wireless connectivity options that keep your devices seamlessly integrated with your system.
Ease of Use and Durability
The ASRock B650M PG Lightning WIFI doesn't just offer performance—it also emphasizes ease of use and durability. With a 6+2+1 power phase and 50A Dr.MOS, this motherboard is built to handle high-performance components with ease. Features like the BIOS Flashback button and ASRock Auto Driver Installer make system setup and maintenance a breeze.
Unmatched Connectivity
The motherboard includes a comprehensive array of USB ports, including USB 3.2 Gen2 Type-C and Type-A ports for ultra-fast data transfer. Whether you're connecting peripherals or transferring files, you'll have all the ports you need.
Elevate Your Build
With ASRock’s suite of bundled software, including Phantom Gaming Tuning, Polychrome SYNC, and Phantom Gaming LAN software, you have everything you need to customize and optimize your system. The ASRock B650M PG Lightning WIFI motherboard is not just a piece of hardware—it's a platform that empowers you to create, play, and work at your highest level.
Why Choose the ASRock B650M PG Lightning WIFI?
- High Performance: Supports the latest AMD Ryzen™ processors and DDR5 memory.
- Advanced Connectivity: Equipped with PCIe Gen5, Wi-Fi 6E, 2.5G LAN, and multiple USB ports.
- Durability and Ease of Use: Built with high-quality components and features that simplify system setup and maintenance.
- Stunning Visuals: Supports 4K 120Hz with integrated AMD RDNA™ graphics
ASRock B650M PG Lightning WIFI AMD B650 Motherboard - FAQ
1. What processors are compatible with the ASRock B650M PG Lightning WIFI motherboard?
- The ASRock B650M PG Lightning WIFI supports AMD Socket AM5 Ryzen™ 9000, 8000, and 7000 series processors.
2. Does this motherboard support DDR5 memory?
- Yes, this motherboard supports dual-channel DDR5 memory technology with up to 256GB capacity. It is compatible with both ECC and non-ECC un-buffered memory, as well as XMP and EXPO memory modules.
3. What graphics support does the ASRock B650M PG Lightning WIFI offer?
- The motherboard features integrated AMD RDNA™ graphics, with HDMI 2.1 and DisplayPort 1.4 outputs, supporting resolutions up to 4K at 120Hz.
4. How many M.2 slots are available on this motherboard?
- The ASRock B650M PG Lightning WIFI has three M.2 slots:
- 1 x Blazing M.2 Socket (PCIe Gen5x4)
- 1 x Hyper M.2 Socket (PCIe Gen4x4)
- 1 x M.2 Socket (PCIe Gen4x2)
5. Can I set up RAID on the ASRock B650M PG Lightning WIFI?
- Yes, this motherboard supports RAID 0, RAID 1, and RAID 10 for both SATA and M.2 NVMe storage devices.
6. What networking options are included with this motherboard?
- The motherboard comes with 2.5 Gigabit LAN (Dragon RTL8125BG chipset), Wi-Fi 6E (802.11ax), and Bluetooth 5.2.
7. Does the ASRock B650M PG Lightning WIFI have USB Type-C ports?
- Yes, it has one USB 3.2 Gen2 Type-C port on the rear and one USB 3.2 Gen1 Type-C port on the front.
8. What form factor is the ASRock B650M PG Lightning WIFI?
- The motherboard is a Micro ATX form factor, measuring 9.6 x 9.6 inches (24.4 x 24.4 cm).
9. What audio features does this motherboard offer?
- The motherboard provides 7.1 CH HD Audio powered by the Realtek ALC897 Audio Codec and includes Nahimic Audio support for an enhanced audio experience.
10. What warranty does the ASRock B650M PG Lightning WIFI come with?
- The motherboard is backed by a 3-year manufacturing warranty.
11. Is there built-in Wi-Fi on the ASRock B650M PG Lightning WIFI?
- Yes, the motherboard features built-in Wi-Fi 6E for high-speed wireless connectivity.
12. What unique features does this motherboard offer?
- Key features include PCIe Gen5 (M.2), a BIOS Flashback button, ASRock Post Status Checker, and software utilities like Phantom Gaming Tuning, Polychrome SYNC, and more.
13. How do I update the BIOS on the ASRock B650M PG Lightning WIFI?
- You can update the BIOS using the BIOS Flashback button or through the ASRock Auto Driver Installer.
14. What software comes bundled with the ASRock B650M PG Lightning WIFI?
- The motherboard includes ASRock Motherboard Utility (Phantom Gaming Tuning), ASRock Phantom Gaming LAN Software, and ASRock Polychrome SYNC.
