ASROCK B650M PG Lightning AMD B650 Chipset Motherboard

Specification

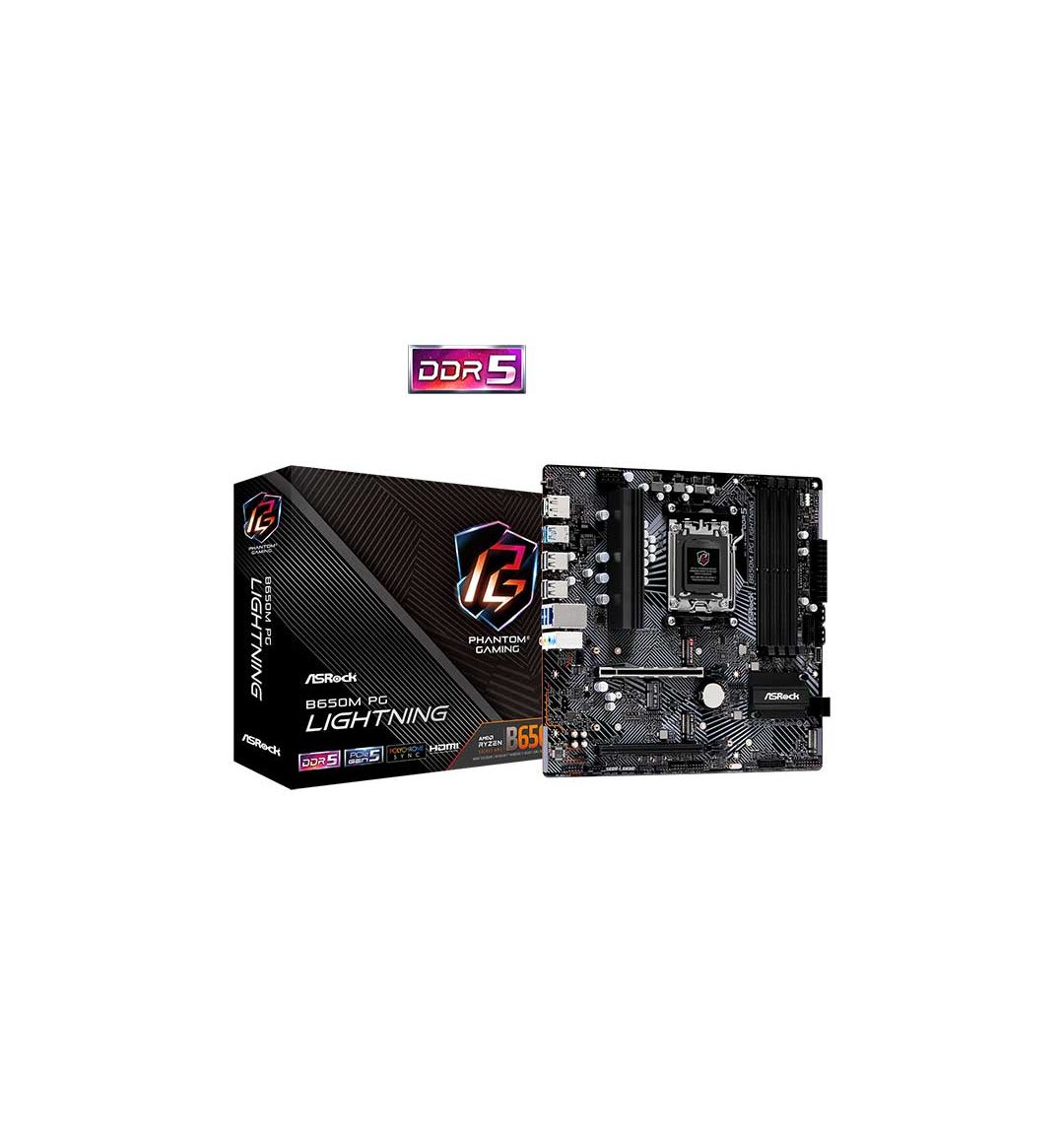

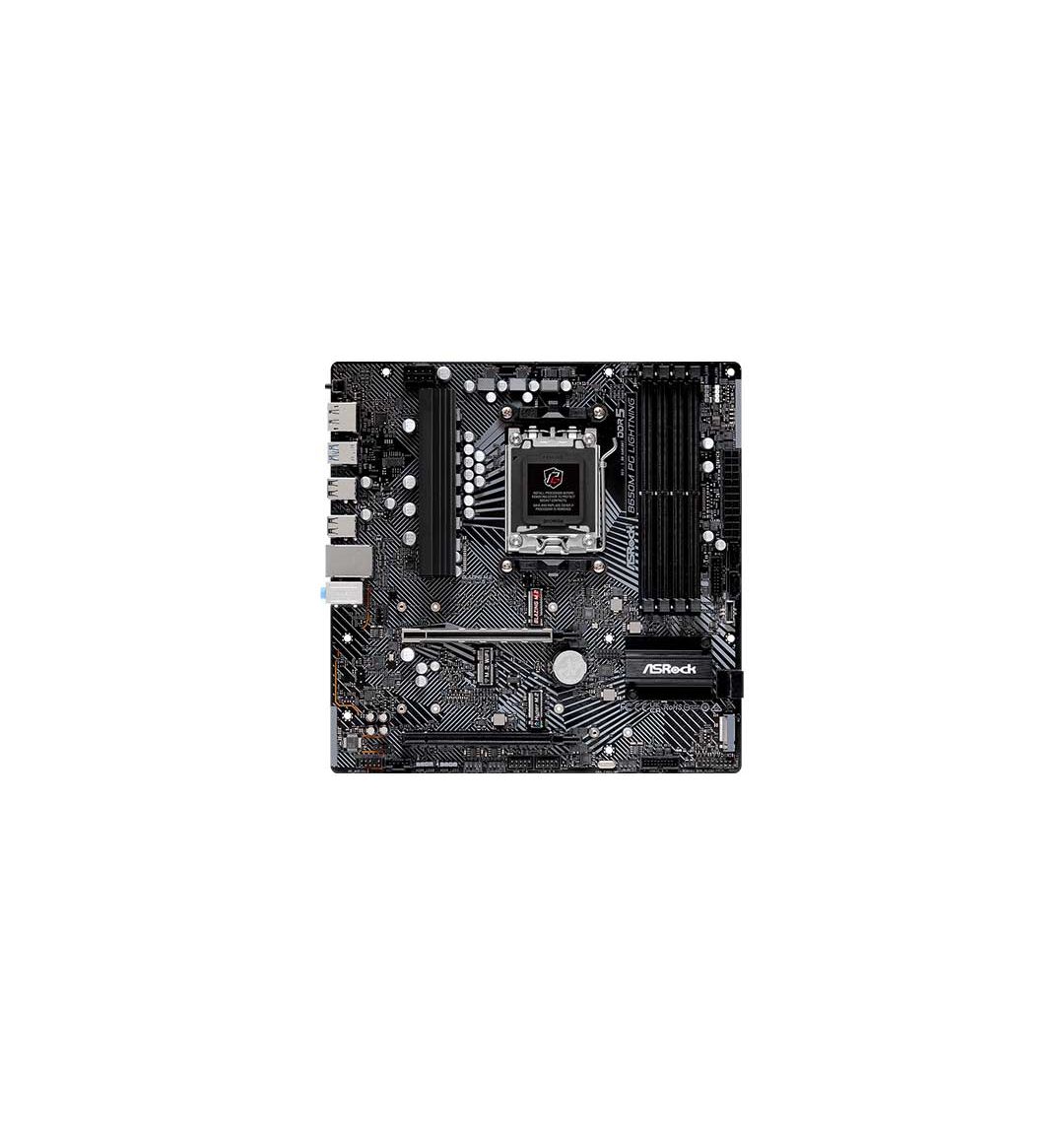

ASRock B650M PG Lightning AM5 Micro ATX Motherboard

Overview

Unlock the full potential of your PC build with the ASRock B650M PG Lightning AM5 Micro ATX Motherboard. Designed to support AMD's latest Ryzen 9000, 8000, and 7000 Series processors, this motherboard delivers exceptional performance and advanced features for both gaming enthusiasts and power users.

Key Features

• High-Performance CPU Support: Compatible with AMD Socket AM5 Ryzen™ processors, including the 9000, 8000, and 7000 Series, the B650M PG Lightning ensures you get top-tier performance and efficiency for demanding applications and gaming.
• Advanced Memory Technology: The motherboard features 4 x DDR5 DIMM slots, supporting up to 256GB of DDR5 memory. With speeds up to 7200+ MHz (OC) and support for Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO), you can achieve peak performance and stability.
• Exceptional Graphics Capabilities: Integrated AMD RDNA™ graphics provide support for high-resolution displays, with HDMI 2.1 and DisplayPort 1.4 outputs capable of delivering up to 4K 120Hz resolution. Ideal for high-quality visuals and smooth gaming experiences.
• Lightning-Fast Storage Options: Equipped with a range of storage options, including a Blazing M.2 Socket for PCIe Gen5x4 speeds, a Hyper M.2 Socket for PCIe Gen4x4, and an additional M.2 Socket for PCIe Gen4x2. Additionally, it features four SATA3 connectors for versatile storage configurations.
• Enhanced Networking: The 2.5 Gigabit LAN with Dragon RTL8125BG ensures rapid and reliable internet connectivity, complemented by Phantom Gaming LAN Software for optimized bandwidth control and network management.
• Customizable Aesthetics: With ASRock Polychrome SYNC, personalize your system with customizable RGB lighting, adding a touch of flair to your build.
• Robust Build Quality: Featuring a 6+2+1 power phase design and 50A Dr.MOS, the B650M PG Lightning ensures stable and reliable power delivery, even during intense usage.
• User-Friendly Features: The motherboard includes a BIOS Flashback Button and ASRock Post Status Checker for easy updates and troubleshooting. The intuitive software suite includes Phantom Gaming Tuning and Auto Driver Installer for a seamless setup experience.

Technical Specifications

• CPU Support: AMD Socket AM5 Ryzen 9000, 8000, 7000 Series
• Chipset: AMD B650
• Memory Slots: 4 x DDR5 DIMM, up to 256GB, DDR5 ECC/non-ECC, un-buffered memory up to 7200+ MHz (OC)
• Graphics Outputs: 1 x HDMI 2.1, 1 x DisplayPort 1.4, 1 x D-Sub
• Audio: 7.1 CH HD Audio (Realtek ALC897), Nahimic Audio
• Storage: 1 x Blazing M.2 Socket (PCIe Gen5x4), 1 x Hyper M.2 Socket (PCIe Gen4x4), 1 x M.2 Socket (PCIe Gen4x2), 4 x SATA3 6.0 Gb/s
• LAN: 2.5 Gigabit LAN with Dragon RTL8125BG
• USB Ports: 1 x USB 3.2 Gen2 Type-C (Rear), 1 x USB 3.2 Gen2 Type-A (Rear), 1 x USB 3.2 Gen1 Type-C (Front), 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front), 8 x USB 2.0 (4 Rear, 4 Front)
• Form Factor: Micro ATX (9.6-in x 9.6-in / 24.4 cm x 24.4 cm)
• Warranty: 3 Years

Why Choose the ASRock B650M PG Lightning AM5 Micro ATX Motherboard?

When selecting a motherboard for your next build or upgrade, the ASRock B650M PG Lightning AM5 Micro ATX Motherboard stands out as a top choice for several compelling reasons:

1. Cutting-Edge CPU Support

Designed for AMD's latest Ryzen™ 9000, 8000, and 7000 Series processors, the B650M PG Lightning offers unparalleled compatibility with top-tier CPUs. Whether you're focusing on gaming, content creation, or general productivity, this motherboard provides the performance you need.

2. Exceptional Memory Performance

Equipped with 4 DDR5 DIMM slots, the B650M PG Lightning supports up to 256GB of high-speed DDR5 memory, with speeds reaching up to 7200 MHz (OC). This ensures smooth multitasking and fast data processing, making it ideal for demanding applications and high-performance gaming.

3. Advanced Graphics Capabilities

The motherboard features integrated AMD RDNA™ graphics, supporting HDMI 2.1 and DisplayPort 1.4 outputs. With resolutions up to 4K at 120Hz, you can enjoy stunning visuals and an immersive gaming experience. Perfect for both casual and competitive gamers.

4. High-Speed Storage Options

With a range of storage solutions, including a Blazing M.2 Socket for PCIe Gen5x4 speeds, a Hyper M.2 Socket for PCIe Gen4x4, and additional M.2 and SATA3 connectors, the B650M PG Lightning ensures lightning-fast data access and ample storage flexibility. Supports RAID configurations for enhanced data redundancy and performance.

5. Fast and Reliable Networking

Featuring 2.5 Gigabit LAN with Dragon RTL8125BG, this motherboard provides high-speed internet connectivity. The included Phantom Gaming LAN Software optimizes bandwidth and network performance, ensuring a stable and responsive online experience.

6. Customizable Aesthetics

The ASRock Polychrome SYNC technology allows you to personalize your system with customizable RGB lighting. Match your motherboard with your build’s color scheme or create dynamic lighting effects to enhance your setup’s look.

7. Robust Build Quality

The B650M PG Lightning is built with a 6+2+1 power phase design and 50A Dr.MOS, providing robust power delivery and reliability. This ensures stable operation even during intense gaming sessions or heavy workloads.

8. User-Friendly Features

Enjoy a hassle-free setup with features like the BIOS Flashback Button for easy updates, ASRockPost Status Checker for troubleshooting, and a suite of intuitive software including Phantom Gaming Tuning and Auto Driver Installer.

9. Future-Proof Investment

With support for the latest technologies and expansion options, the ASRock B650M PG Lightning is designed to keep up with future advancements. This ensures your system remains relevant and high-performing for years to come.

FAQ for ASRock B650M PG Lightning AM5 Micro ATX Motherboard

1. What processors are compatible with the ASRock B650M PG Lightning motherboard?

• The ASRock B650M PG Lightning supports AMD Ryzen™ 9000, 8000, and 7000 Series processors using the AM5 socket. It is designed to leverage the latest AMD CPU technologies for optimal performance.

2. How much memory can the ASRock B650M PG Lightning motherboard support?

• This motherboard supports up to 256GB of DDR5 memory across four DIMM slots. It supports DDR5 memory speeds up to 7200 MHz (OC), ensuring excellent performance for demanding applications.

3. What are the graphics capabilities of the ASRock B650M PG Lightning?

• The motherboard features integrated AMD RDNA™ graphics, with one HDMI 2.1 and one DisplayPort 1.4 output. It supports resolutions up to 4K at 120Hz, providing high-quality visuals for gaming and multimedia.

4. What storage options does the ASRock B650M PG Lightning offer?

• The motherboard includes a Blazing M.2 Socket for PCIe Gen5x4, a Hyper M.2 Socket for PCIe Gen4x4, and an additional M.2 Socket for PCIe Gen4x2. It also has four SATA3 6.0 Gb/s connectors for versatile storage solutions.

5. Does the ASRock B650M PG Lightning support RAID configurations?

• Yes, it supports RAID 0, RAID 1, and RAID 10 for both SATA and M.2 NVMe storage devices. Additional M.2 NVMe expansion cards are required to support RAID 10 configurations for NVMe drives.

6. What kind of network connectivity does the ASRock B650M PG Lightning provide?

• The motherboard features 2.5 Gigabit LAN with Dragon RTL8125BG, ensuring high-speed and reliable network connections. It also comes with Phantom Gaming LAN Software to optimize network performance.

7. Can I customize the lighting on the ASRock B650M PG Lightning motherboard?

• Yes, the ASRockB650M PG Lightning includes Polychrome SYNC technology, allowing you to customize and synchronize RGB lighting with other compatible components in your build.

8. What BIOS features are available with the ASRock B650M PG Lightning?

• The motherboard features a 256Mb AMI UEFI Legal BIOS with GUI support, which includes EZ Mode, Full HD UEFI, My Favorites in UEFI, and tools for easy driver installation and RAID configuration.

9. What warranty is provided with the ASRock B650M PG Lightning?

• The motherboard comes with a 3-year warranty, ensuring long-term reliability and support.

10. What are the dimensions of the ASRock B650M PG Lightning motherboard?

• The motherboard has a Micro ATX form factor with dimensions of 9.6 inches x 9.6 inches (24.4 cm x 24.4 cm), making it compatible with most mid-tower and larger cases.
